Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Nut securing rear power window mechanism to door Items 1 and 2 Tightening torque 7.5 Nm (5.5 ftlb.)

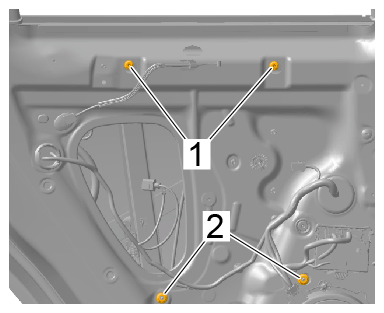

G15238628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts for rear power window mechanism
