Removing Rear Power Windows Mechanism

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove stopper -1-  .
    G15238630Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug

  2. Loosen nuts at the top -1-  .
    G15238631Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts at the top

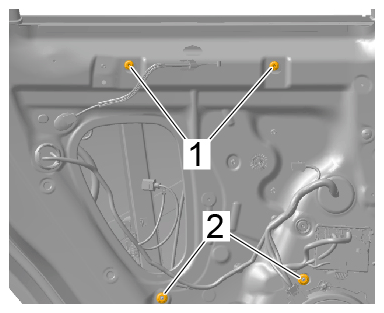

  3. Unscrew nuts at the bottom -2-  .
    G15238632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Nuts at the bottom

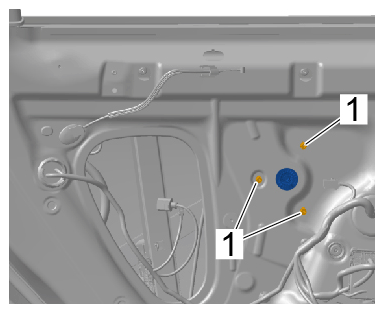

  4. Unclip mountings for power window motor -1-  .
    G15238633Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mountings for power window motor

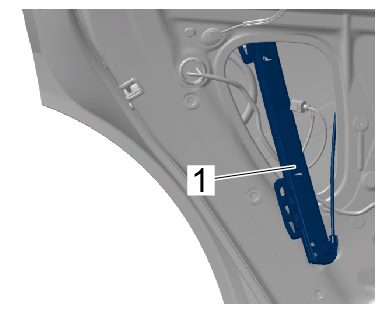

  5. Disengage rear power windows mechanism and push rear rail -1-  through the assembly opening.
    G15238634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear rail

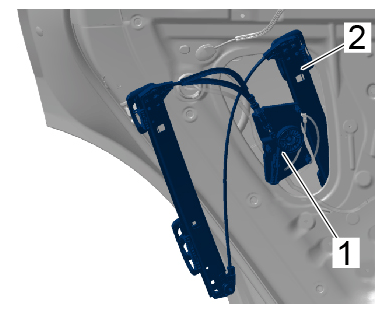

  6. Push mounting for power window motor -1-  with front rail -2-  through the assembly opening and remove rear power windows mechanism from the rear door.
    G15238635Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front rail
