Installing Rear Window Channel Seal

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

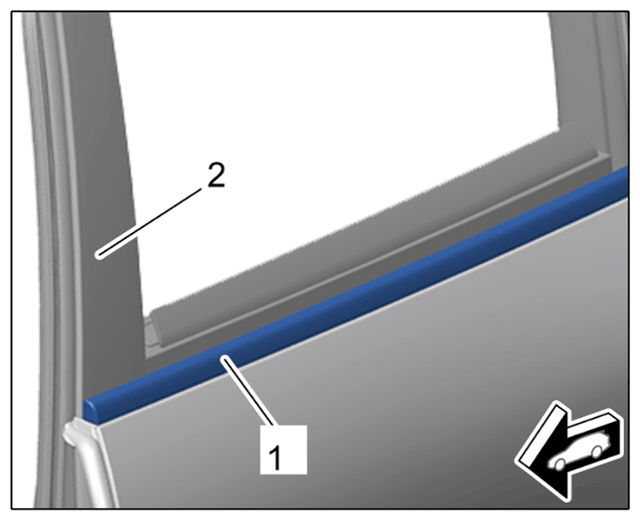

  1. Align rear window channel seal -1-  with the B-pillar trim -2-  and press it on from front to rear.
    G15238627Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear window channel seal
