Removing Rear Door Window

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move rear door window -1-  into position.
    G15238618Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear door window

    1. 1.1 Connect wiring harness in door panel.
    2. 1.2 Raise rear door window -1-  until the fixing clip -2-  is easily accessible.
    3. 1.3 Disconnect wiring harness in door panel.
  2. Unclip rear door window -1-  from the fixing clips using a plastic wedge.

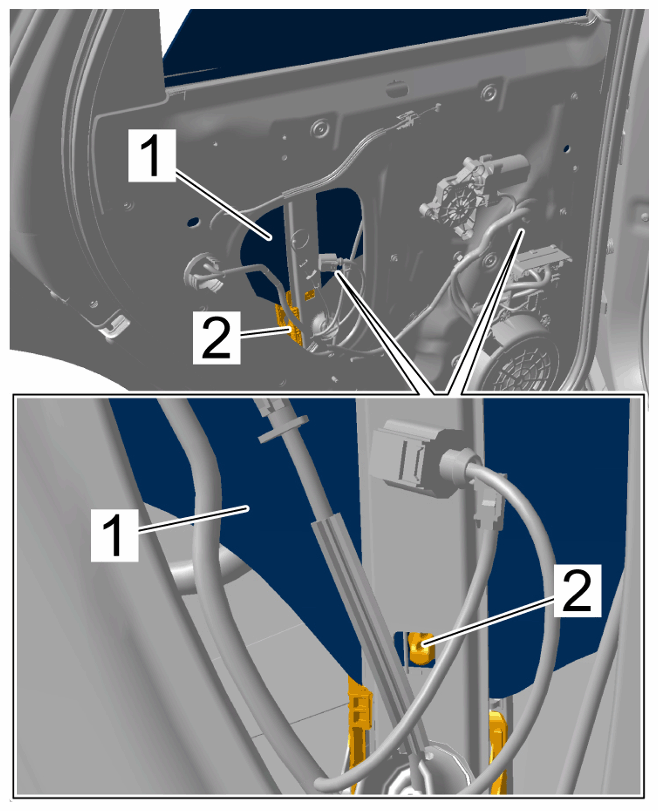

    G15238619Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

  3. Pull rear door window up and out.
