Removing Switch For Power Windows

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press retaining lugs -1-  together all the way around and remove switch for power windows -2-  by pulling it up out of the armrest.

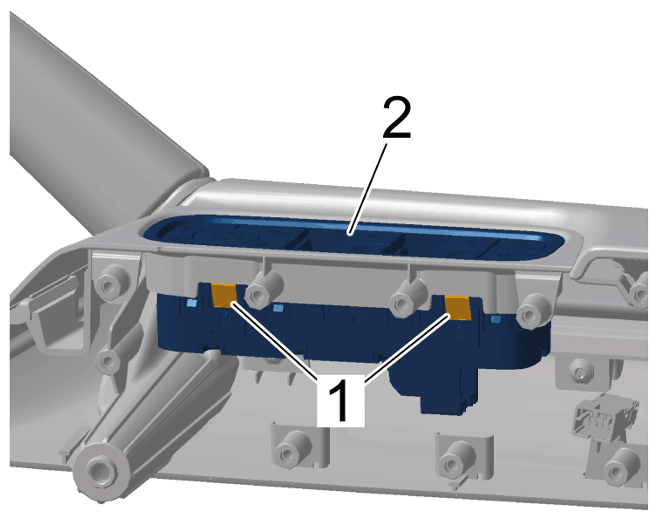

    G15238616Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch for power windows
