Removing Window Regulator Motor

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed
→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

Information

The end positions of the power windows are deleted from the control unit when the electric connectors are disconnected and connected.

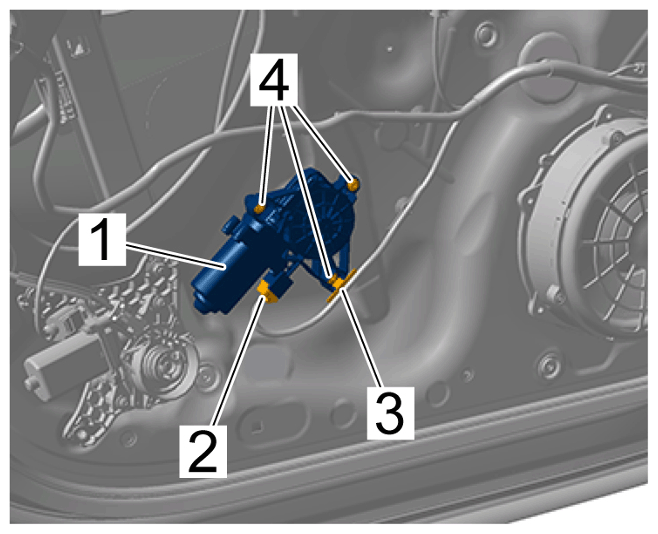

Release and unplug electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Unclip line bracket -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line
Unscrew screws -4- for window regulator motor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Pull power window motor out of the splines.
