Removing Front Power Windows Mechanism

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove stopper -1-  .

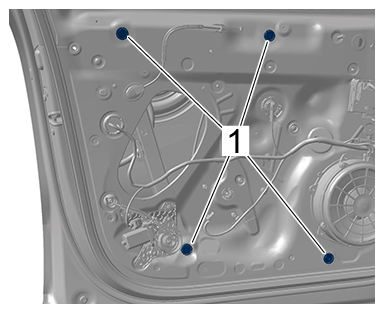

    G15238606Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug

  2. Loosen fastening nuts at the top -1-  .
    G15238607Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts

  3. Screw off fastening nuts at the bottom -2-  .

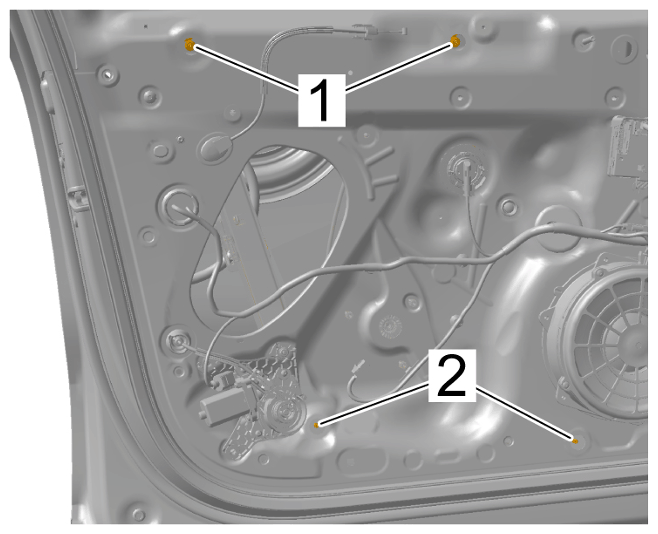

    G15238608Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts

  4. Unclip bowden cable -1-  (-Arrow-  ) and unclip mountings for power window motor -2-  .

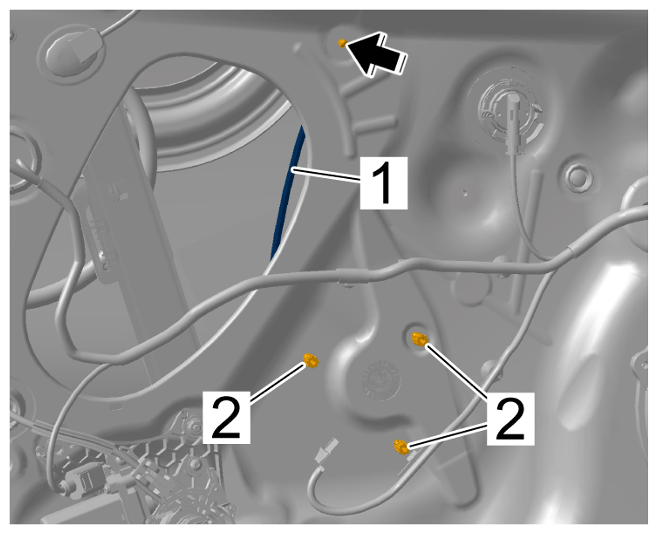

    G15238609Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bowden cable

  5. Disengage power windows mechanism, fold it up and remove it through the assembly opening.
