Removing Front Window Channel Seal

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Roll the door window down.

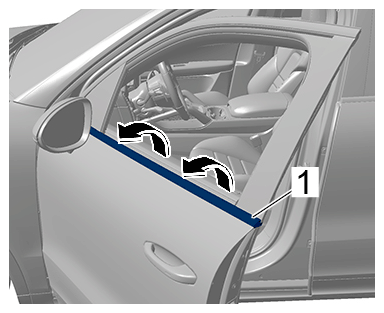

  2. Lever off front window channel seal -1-  by pressing outwards using an assembly wedge -Arrows-  .
    G15238602Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window channel seal
