Installing Front Window Channel Seal

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Make sure that the front window channel seal is fitted correctly during installation.

  1. Align front window channel seal with the B-pillar trim.
  2. Fit front window channel seal on the flange and press it on, starting at the front.

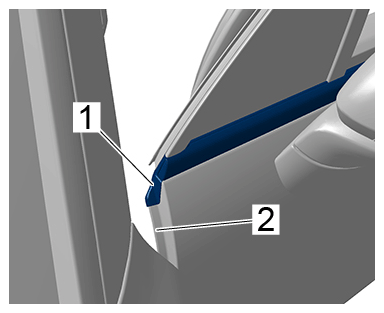

  3. Press on front section of front window channel seal -1-  at the front edge of the door -2-  .
    G15238603Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front edge of door
