Removing Rear Window Guide

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

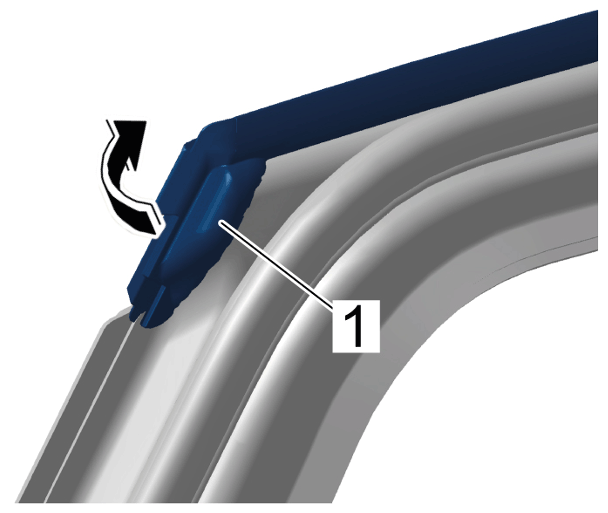

Loosen rear window guide -1- in the upper C-pillar area and invert it -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window guide

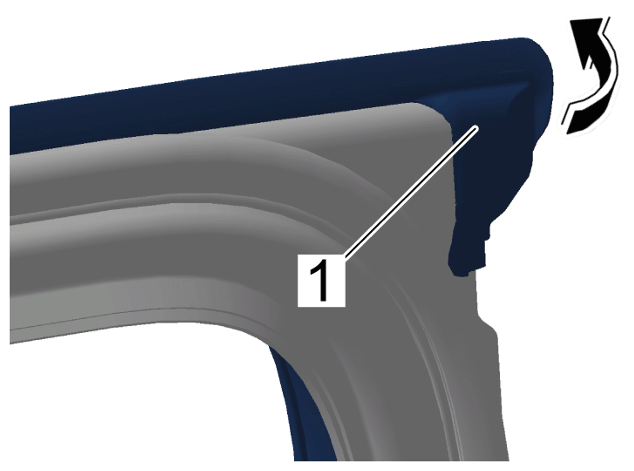

Loosen rear window guide -1- in the B-pillar area and invert it -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window guide

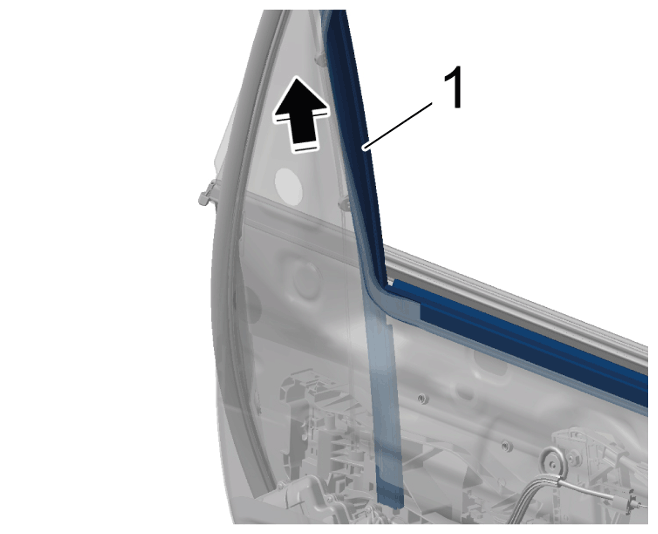

Pull rear window guide -1- up -Arrow- out of the rear door.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window guide

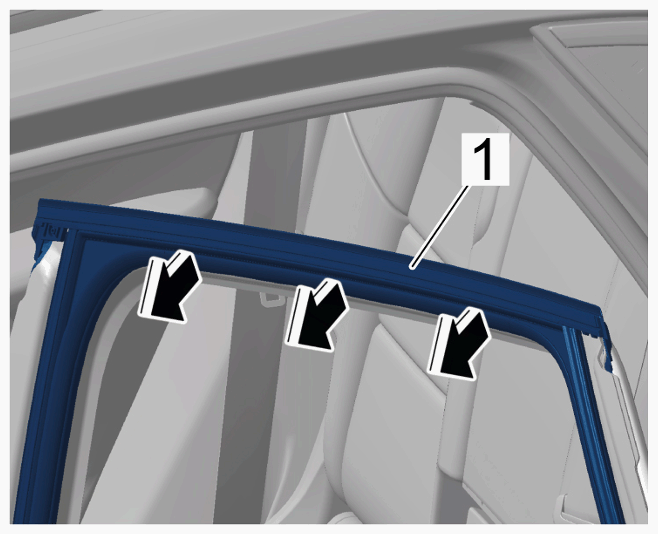

Pull off rear window guide -1- in the upper door frame area -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window guide

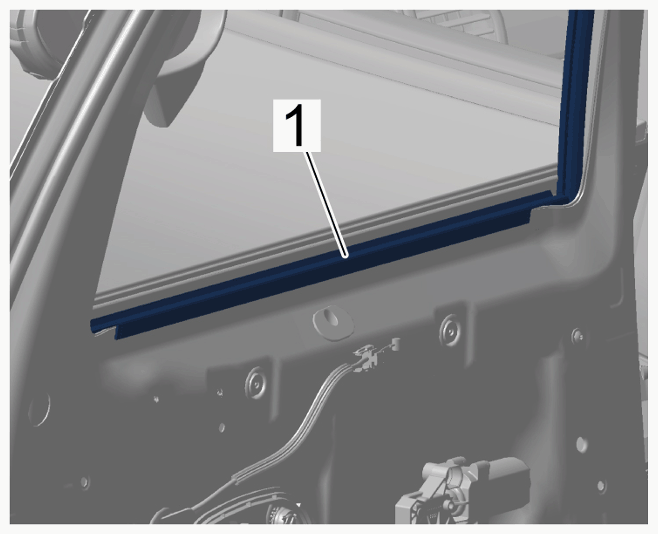

Pull off rear window guide -1- in the window channel area and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear window guide
