Removing Front Window Guide

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

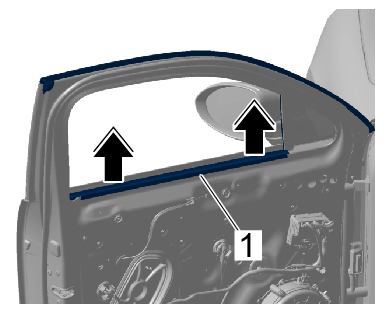

  1. Pull off front window guide -1-  on inner window channel -Arrows-  .
    G15238587Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide on inner window channel

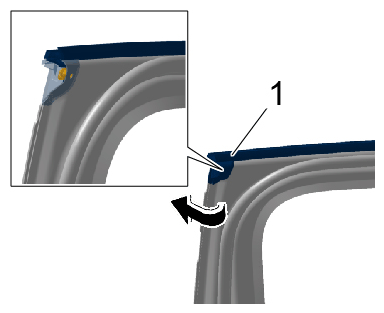

  2. Pull front window guide -1-  off the top corner of the door -Arrow-  .
    G15238588Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front window guide from corner of door

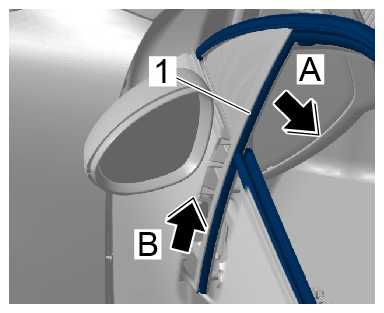

  3. Pull front window guide -1-  out of the bar on the triangular window -arrow A-  and guide it out of the front door -arrow B-  .
    G15238589Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide in bar on triangular window

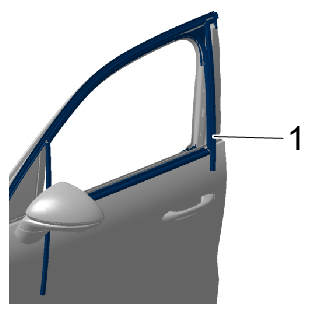

  4. Leave front window guide -1-  hanging at the outside of the front door.
    G15238590Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide

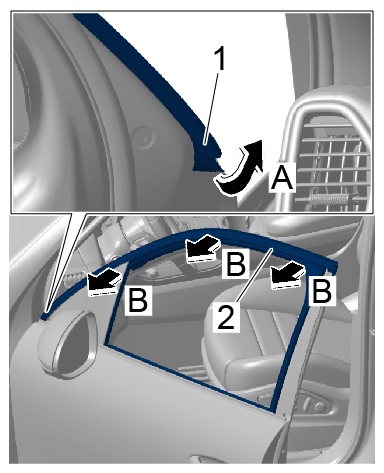

  5. Pull moulded part -1-  off the corner of the A-pillar -arrow A-  .
    G15238591Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded part

  6. Pull front window guide -2-  off the door -arrow B-  .
    G15238592Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front window guide
