Installing (Front) Door Window Frame
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

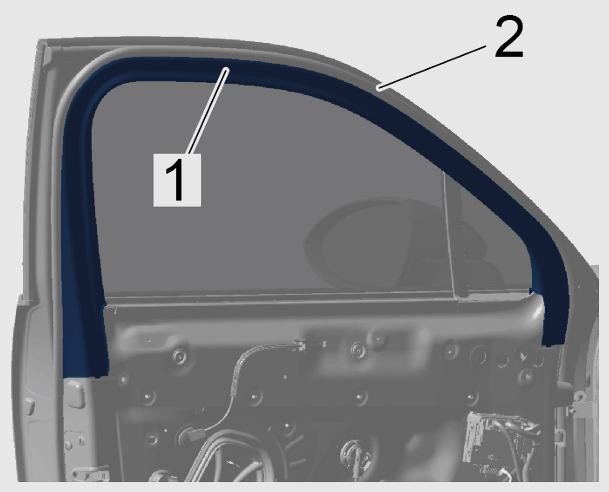

- Pull door seal -2-
over the door window frame -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Door window frame (front)

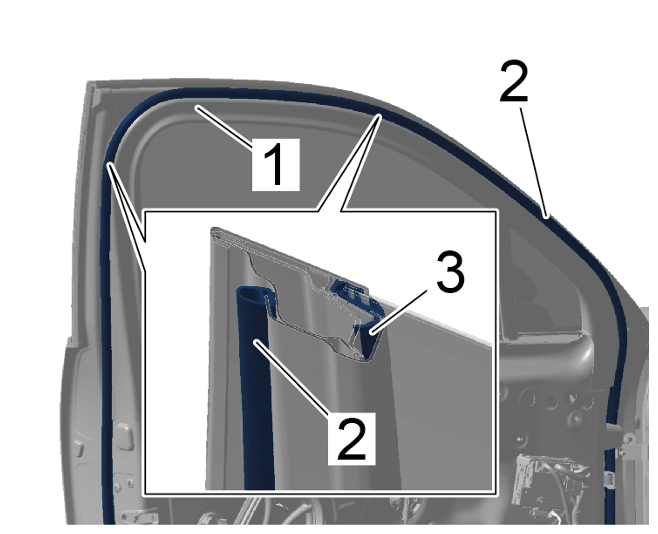

- Check that the door window frame -1-
is fitted correctly in the door seal -2-
and window seal -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Door seal
