Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

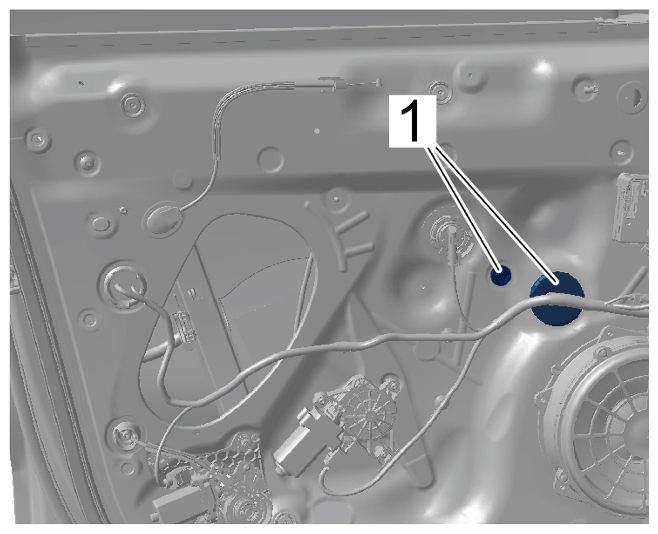

  1. Press in rubber sleeves -1-  .
    G15238572Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeves

  2. Clip in new cover -1-  .
    G15238573Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

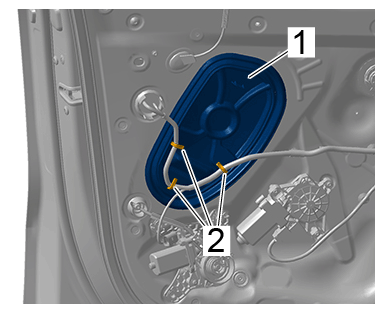

  3. Engage electric wire harness in bracket -2-  .
    G15238574Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bracket

  4. Install front door panel.

    > 705919 REMOVING AND INSTALLING FRONT DOOR PANEL

  5. Install front window channel seal.

    > 644819 REMOVING AND INSTALLING FRONT WINDOW CHANNEL SEAL
