Removing Front Door Window

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move front door window -1-  into position.
    G15238569Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front door window

    1. 1.1 Connect wiring harness in door panel.
    2. 1.2 Raise the front door window -1-  until the fixing clips -2-  are easily accessible.
    3. 1.3 Disconnect wiring harness in door panel.

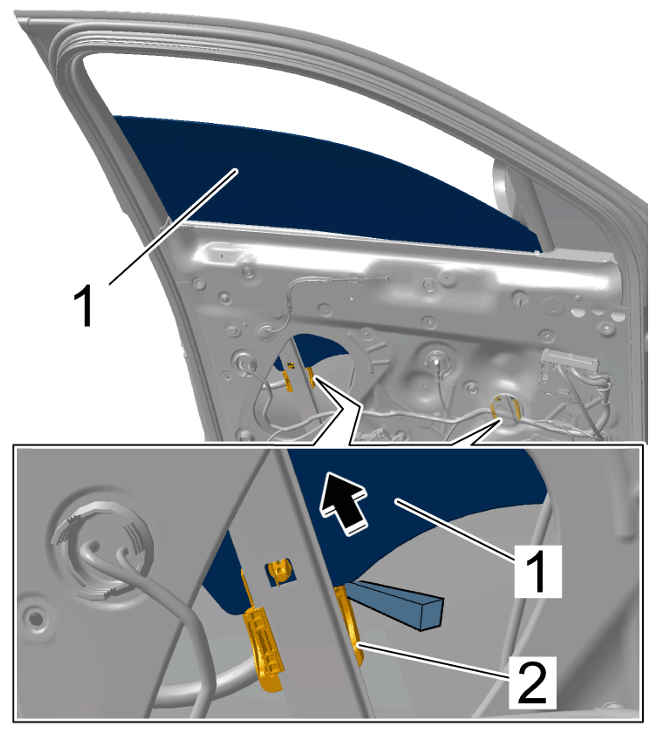

  2. Use an assembly wedge to unclip the front door window -1-  from the fixing clips -2-  and remove front door window -1-  by pulling it upwards -Arrow-  .
    G15238570Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips
