Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front window channel seal.

    > 644819 REMOVING AND INSTALLING FRONT WINDOW CHANNEL SEAL

  2. Remove front door panel.

    > 705919 REMOVING AND INSTALLING FRONT DOOR PANEL

    Information

    The cover must be replaced following removal.

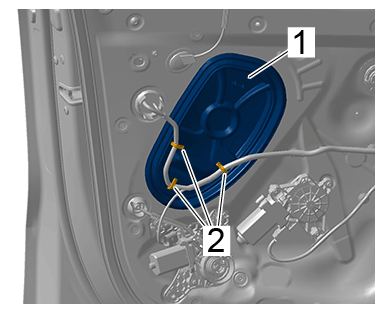

  3. Remove cover -1-  .
    G15238567Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    1. 3.1 Disengage electric wire harness from holders -2-  .
    2. 3.2 Unclip cover -1-  .

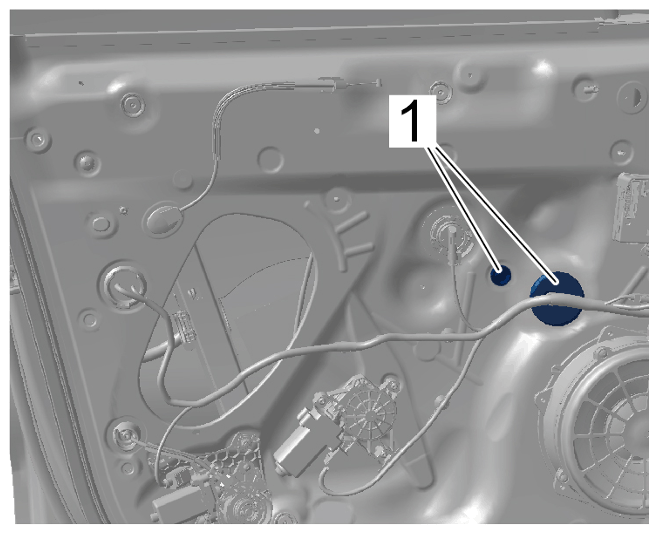

  4. Remove rubber sleeves -1-  .
    G15238568Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeves
