Installing Front Door Window

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Swivel in front door window -1-  .

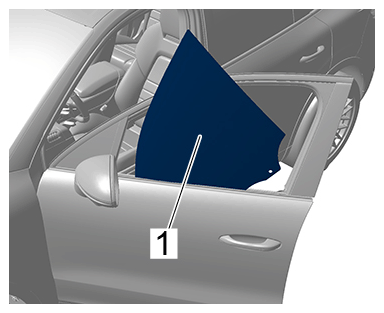

    G15238571Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front door window

  2. Insert front door window glass into both guides.

    Information

    The door window must lock into place smoothly and without forcing it.

  3. Lower the door window onto the fixing clips and then lock it into place.
  4. Check that the front door window is engaged securely in the fixing clips using your hand.
  5. Close the front door window.
