Technical Values
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

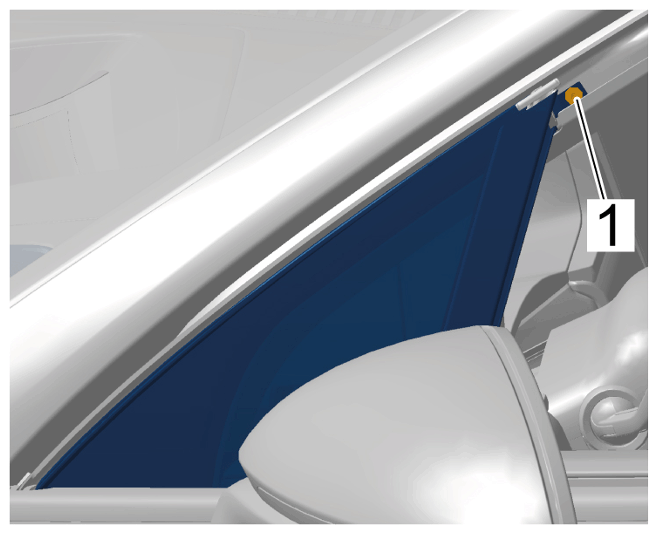

| Front corner outer window pane |
Item 1 |
Tightening torque |
2.5 Nm (1.9 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Outer screw |

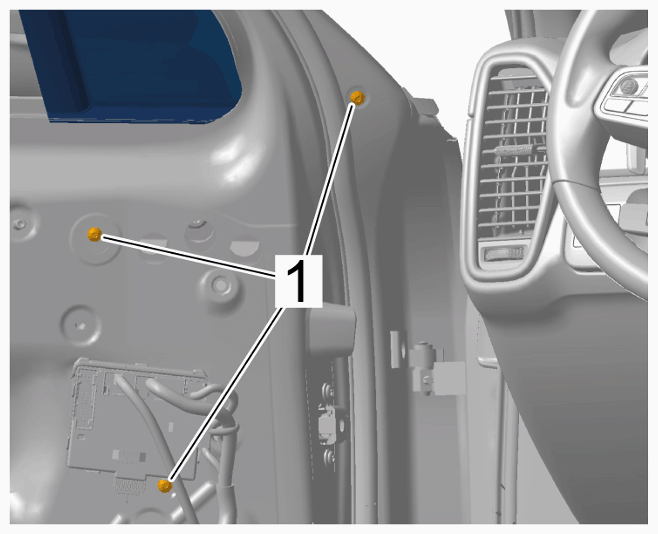

| Front corner inner window pane |
Item 1 |
Tightening torque |
4.5 Nm (3.3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Inner screws |
