Removing Front Corner Window Pane

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

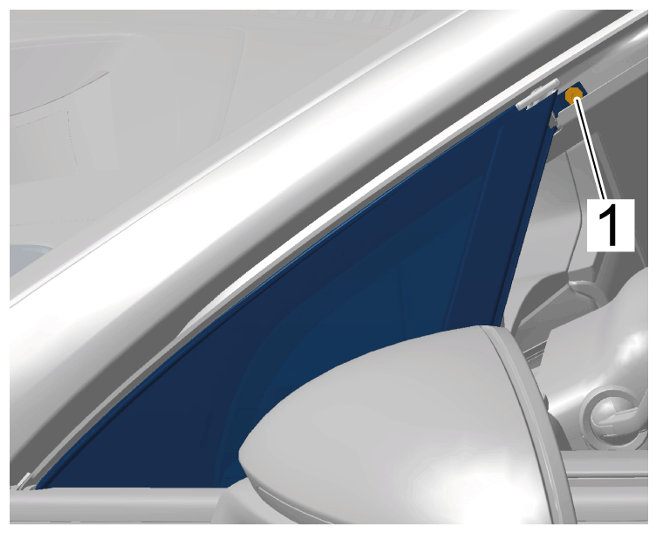

  1. Unscrew outer screw -1-  .
    G15238559Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outer screw

    Information

    The screws are located in the inner area of the door. Pull off the sticker in order to unscrew the screws and stick it back on again exactly after screwing in the screws.

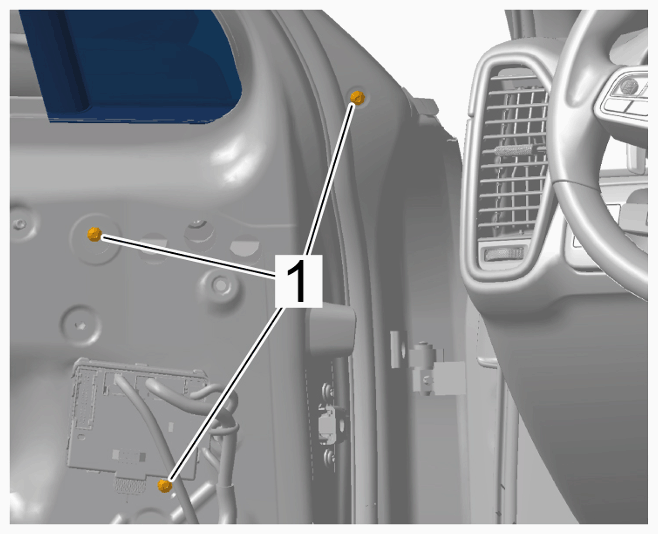

  2. Pull off sticker and unscrew inner screws -1-  .
    G15238560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inner screws

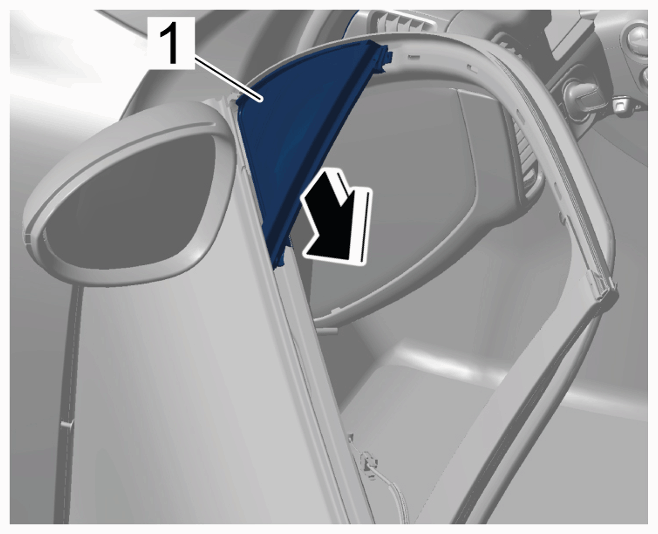

  3. Slide front corner window pane -1-  out of the corner window -Arrow-  .
    G15238561Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Corner window

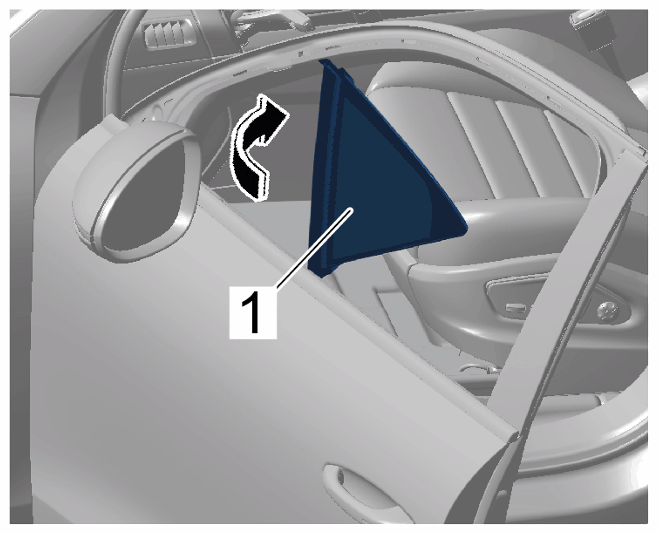

  4. Turn front corner window pane -1-  (-Arrow-  ).
    G15238562Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Corner window pane

  5. Remove front corner window pane from front door.
