Tools And Materials
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
The following tools and materials are required for removing and installing the windscreen with 2-component window bonding agent:

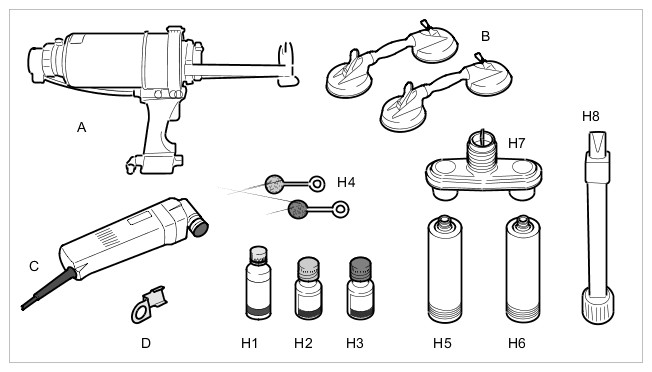

Tools and materials for removing and installing windscreen
| A | Double cartridge gun VAS 5237; see Service Information 3.5 |
| B | Suction cups VAG 1344; see Service Information 3.5 |
| C | Special electric cutter (fine) VAG 1561 A; see Service Information 3.5 |
| D | Flashing knife, U-shaped 639.031.130.22; see Parts Information 8 |
| H | 2-component window adhesive 000.043.300.94, contains set components H1-H8; see Parts Information 8 |
| H1 | Cleaning solution |
| H2 | Primer |
| H3 | Activator |
| H4 | Swab |
| H5 | Cartridge, component A |
| H6 | Cartridge, component B |
| H7 | Mixing nozzle |
| H8 | Processing nozzle |

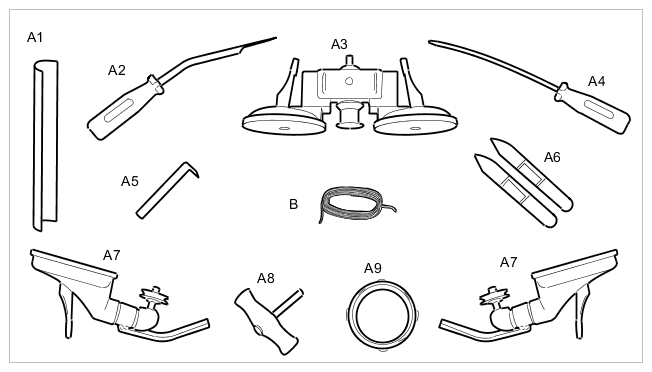

| A | Removal kit for flush bonded windows VAG 1474 B, contains set components A1-A9; see Service Information 3.5 |
| B | Cutting thread; see Parts Information 8 |
| A1 | Guide rail |
| A2 | Cutting tool |
| A3 | Spooling device |
| A4 | Awl |
| A5 | Guide rail |
| A6 | Filler |
| A7 | Steering roller with arm bracket |
| A8 | Handle |
| A9 | Cutting cord |
