Technical Values
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

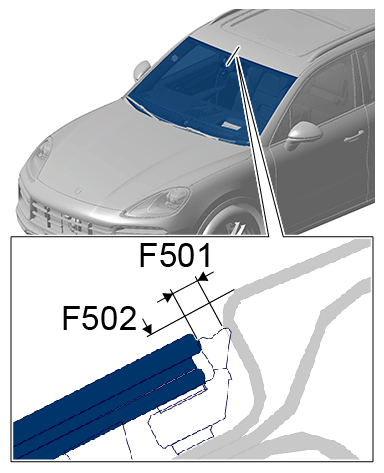

| Windscreen to roof (F501) | Gap dimension | 2.9 mm | |||
|
Gap dimension |
|||||
| Windscreen to roof (F502) | Offset | Gap dimension | 2 mm | +/- 0.5 mm | |
|
Gap dimension |
|||||
| Cutting cord, total length | approx. 6 turns of the reel | Length | 6 m | ||
| Applying adhesive | Application depth | 15 mm | |||
