Subsequent Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install cover.
> WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER
Install upper part of A-pillar trim panel at the left and right.
> WM, 70571903 REMOVING AND INSTALLING A-PILLAR TRIM PANEL (UPPER PART)
Secure electric lines -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

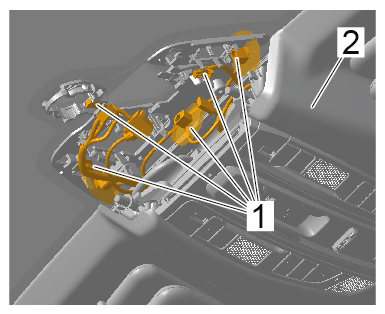

Electric lines
1. 3.1 Loosen electric lines from headliner -2- and remove adhesive residue.
2. 3.2 Clip electric lines -1- into windscreen.
Install WiFi antenna.
> WM, 918519 REMOVING AND INSTALLING WIFI ANTENNA
Install GPS antenna.
> WM, 911319 REMOVING AND INSTALLING GPS ANTENNA
Install mobile communication antenna.
> WM, 914719 REMOVING AND INSTALLING MOBILE COMMUNICATION ANTENNA
Install rain sensor.
> WM, 921255 REPLACING RAIN/WEATHER SENSOR
Install front camera.
> WM, 963819 REMOVING AND INSTALLING FRONT CAMERA
Install interior rear-view mirror.
> 682719 REMOVING AND INSTALLING INTERIOR REAR-VIEW MIRROR
Program control unit for windscreen projection.
> WM, 908625 CALIBRATE WINDSCREEN PROJECTION CONTROL UNIT
