Removing Windscreen

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle windows removed and installed incorrectly

Danger of cuts
Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

Information

The procedure for removing car windows is described in
> 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS

Information

The help of another person is required.

Information

Increase the fixing force of the suction cup by moistening it if necessary.

> VAS 861 001A - Window removal set must be attached to the inside of the windscreen.
Unwind the cutting cord and cut it using a cutter. > Length 6 m
Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

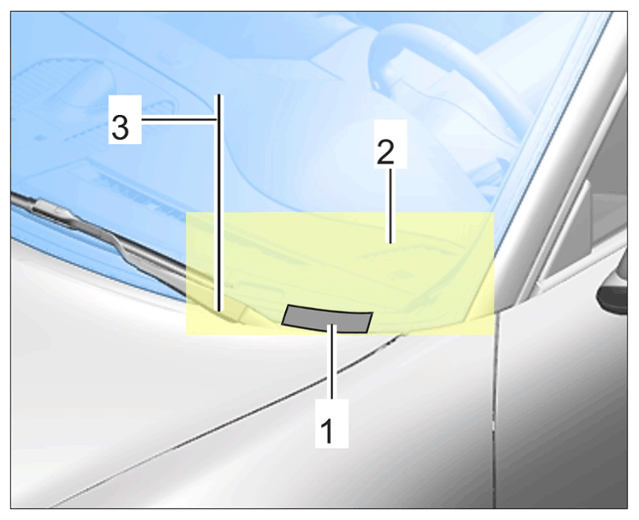

Vehicle identification number
- To prevent damage, slide the protective film -2- supplied with the cutting tool between the windscreen and vehicle identification number -1- .
- Guide the cutting cord -3- over the protective film -2- when separating the glass.

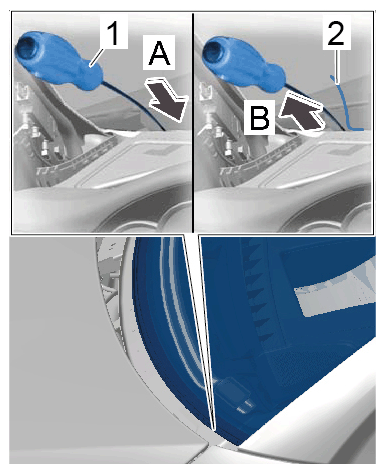

Pierce the adhesive bead with the scratch awl -1- (-arrow A- ) and use the cutting cord -2- to pull it through from the outside in -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Scratch awl

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting cord

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protective film

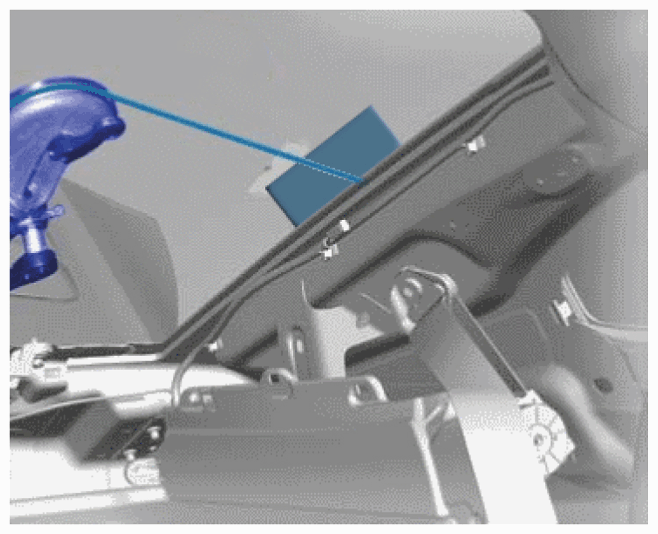

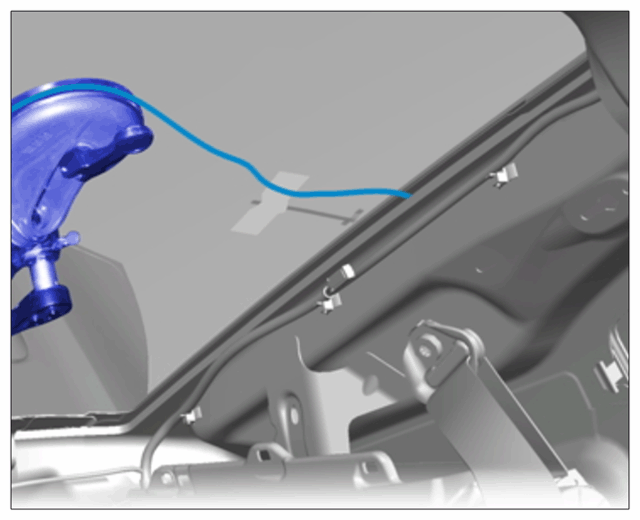

- Make sure not to damage electric connections when removing the glass using cutting cord.
- Cut up to just before the electric connection.
- Slacken the cutting cord.
- Guide cutting cord past the electric connection on the inside.
- Protect electric connections with protective film.
- Make sure that the cutting cord does not press against electric connections when removing the glass.
- Continue separating the window glass.
Information
- Increase the fixing force of the suction cup by cleaning the window from the inside if necessary.
Separate windscreen.
1. 4.1 Insert the cutting cord into the bore on the spooling device.
2. 4.2 Align the spooling device so that the angle of the cutting cord with respect to the window frame is as acute as possible.
  Press spooling device with suction cups firmly against the windscreen.
3. 4.3 Cut out the windscreen by winding the cutting cord onto the spooling device.
  Re-position the spooling device to reduce the tensile force of the cutting cord when removing the glass.

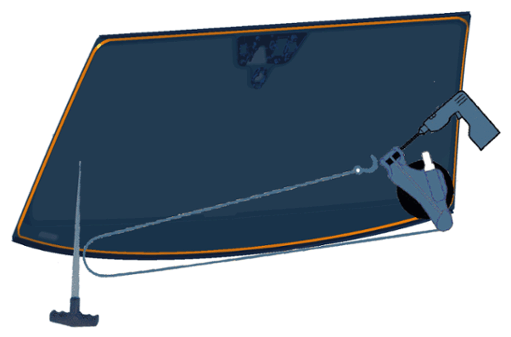

Cut adhesive bead at the bottom using > VAS 861 001A - window removal set . > Adhesive bead at the bottom

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead at the bottom

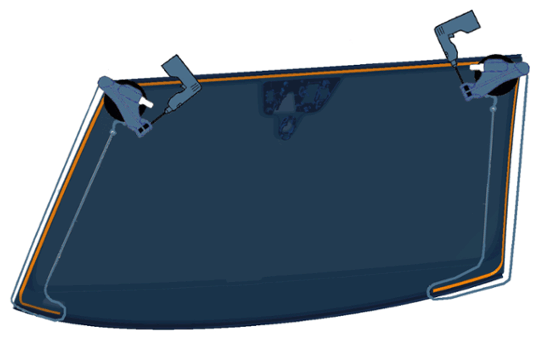

Cut adhesive bead on both sides using > VAS 861 001A - window removal set . > Adhesive bead at the sides

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead at the sides

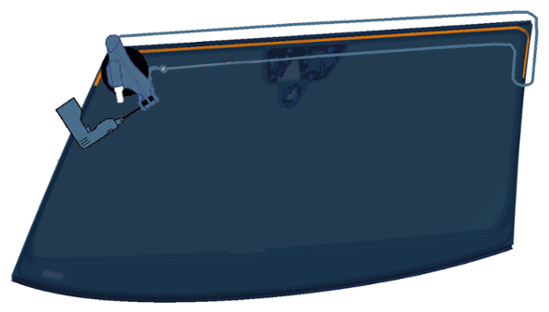

Cut adhesive bead at the top using > VAS 861 001A - window removal set > Adhesive bead at the top

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead at the top

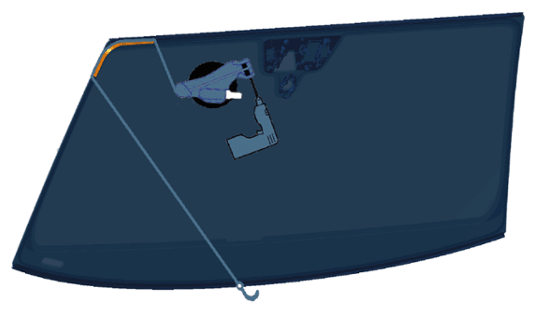

Cut adhesive bead in the top corners using > VAS 861 001A - window removal set . > Adhesive bead in corner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead in corner
Affix the suction cups to the outside of the windscreen and remove windscreen.
