Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove interior rear-view mirror.

    > 682719 REMOVING AND INSTALLING INTERIOR REAR-VIEW MIRROR

  2. Remove front camera.

    > WM, 963819 REMOVING AND INSTALLING FRONT CAMERA

  3. Remove rain sensor.

    > WM, 921255 REPLACING RAIN/WEATHER SENSOR

  4. Remove mobile communication antenna.

    > WM, 914719 REMOVING AND INSTALLING MOBILE COMMUNICATION ANTENNA

  5. Remove GPS antenna.

    > WM, 911319 REMOVING AND INSTALLING GPS ANTENNA

  6. Remove WiFi antenna.

    > WM, 918519 REMOVING AND INSTALLING WIFI ANTENNA

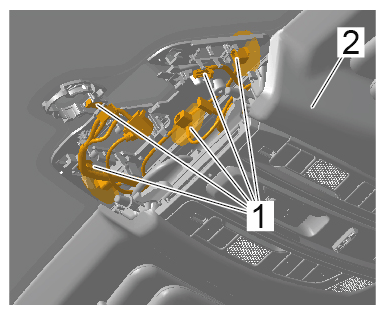

  7. Secure electric lines -1-  .
    G15238538Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines

    1. 7.1 Unclip electric lines -1-  from windscreen.
    2. 7.2 Secure electric lines -1-  to the headliner -2-  using adhesive tape.
  8. Remove upper part of A-pillar trim panel at the left and right.

    > WM, 70571903 REMOVING AND INSTALLING A-PILLAR TRIM PANEL (UPPER PART)

  9. Remove cover.

    > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER
