Technical Values

Location	Description	Type	Basic value
Connecting link for anti-roll bar	Item 3: Hexagon-head bolt, M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Initial tightening	40 Nm (29.4 ftlb.) (29.5 ftlb.)

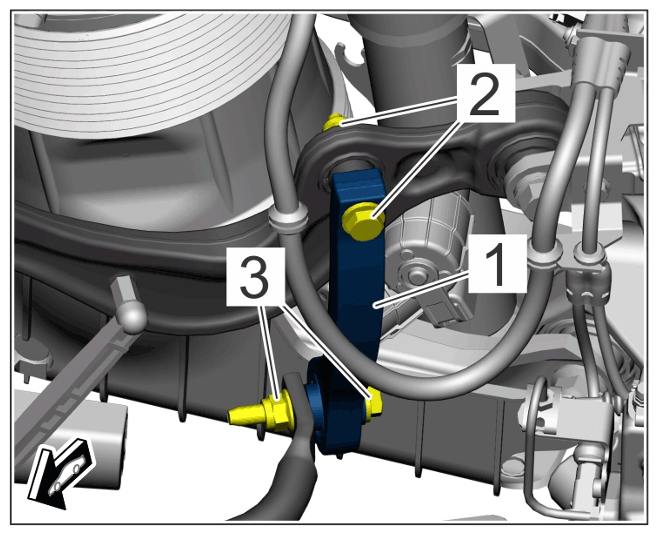

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Connecting link to anti-roll bar	Item 3: Hexagon-head screw M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Final tightening	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Connecting link to upper control arm	Item 2: Hexagon-head bolt, M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Initial tightening	40 Nm (29.4 ftlb.) (29.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Connecting link to upper control arm	Item 2: Hexagon-head screw M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Final tightening	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
