Removing Connecting Link For Anti-Roll Bar

WARNING: Wheel bearing housing raised incorrectly
  • Risk of crushing
  • Risk of damage to components
  1. → Wear personal protective gear.
  2. → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).
  1. Remove rear connecting link -1-  .

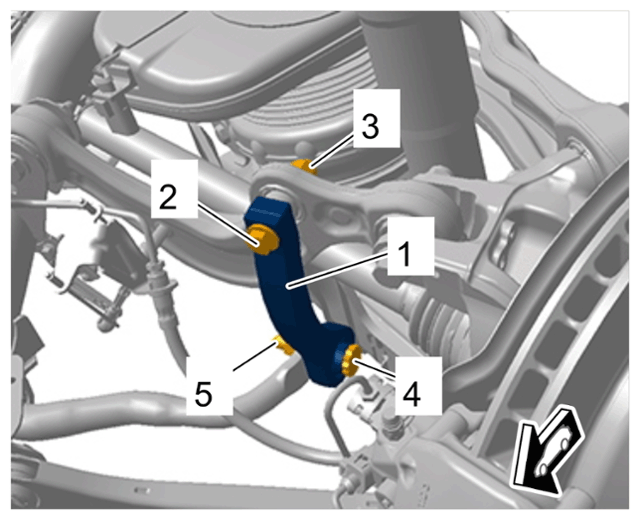

    G15292085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear connecting link

    1. 1.1  Unscrew screw -2-  and counter at the nut -3-  .
    2. 1.2  Unscrew screw -4-  and counter at the nut -5-  .
    3. 1.3  Remove rear connecting link -1-  .
