Installing Connecting Link For Anti-Roll Bar

WARNING: Wheel bearing housing raised incorrectly

Risk of crushing
Risk of damage to components

→ Wear personal protective gear.
→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

Threaded joints must only be tightened in zero position to prevent warping in the bearings.

Install rear connecting link -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

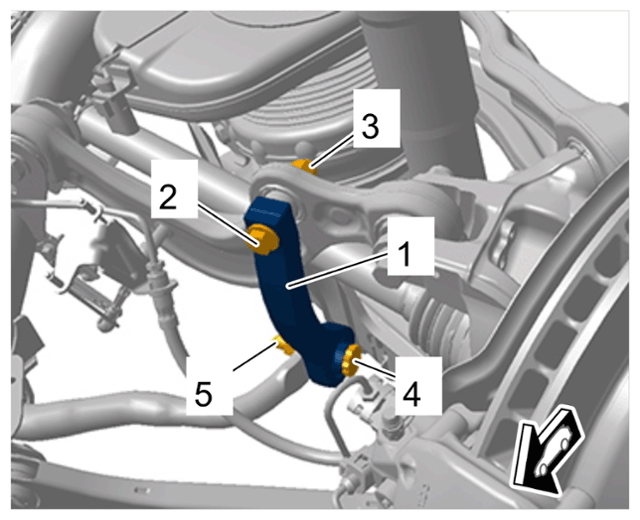

Rear connecting link
1. 1.1 Position rear connecting link -1-
2. 1.2 Position screw -2- and screw on and tighten nut -3- .
  > Initial tightening 40 Nm (29.4 ftlb.) (29.5 ftlb.) > Final tightening + 180°
3. 1.3 Position screw -4- and screw on and tighten nut -5- .
  > Initial tightening 40 Nm (29.4 ftlb.) (29.5 ftlb.) > Final tightening + 180°
