Technical Values

Location	Description	Type	Basic value
PDCC ground line to body (rear axle)	Ground pin, M10	Tightening torque	16 Nm (12 ftlb.)

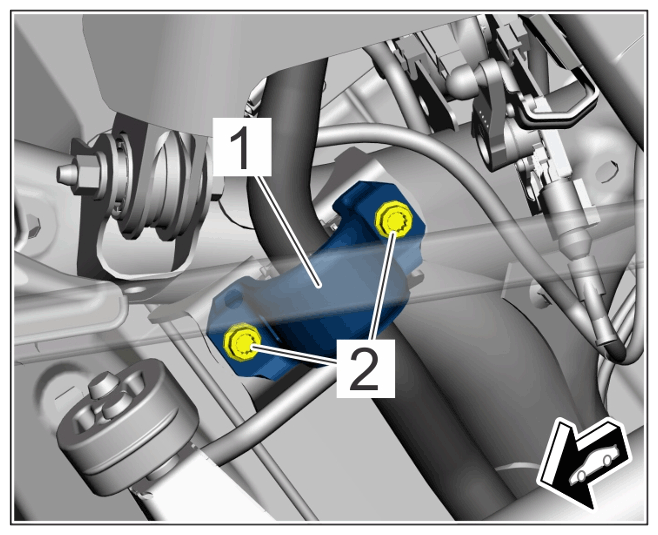

Clamp for anti-roll-bar mount to rear axle housing	Item 2: Internal serration screw, M8 x 25/Always replace screws following removal	Initial tightening	25 Nm (22 ftlb.) (18.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Clip on Stabiliser mount
Clamp anti-roll bar mount to rear axle housing	Item 2: Internal multipoint screw M8 x 25/Always replace screw following removal	Final tightening torque	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Clip on anti-roll-bar mount

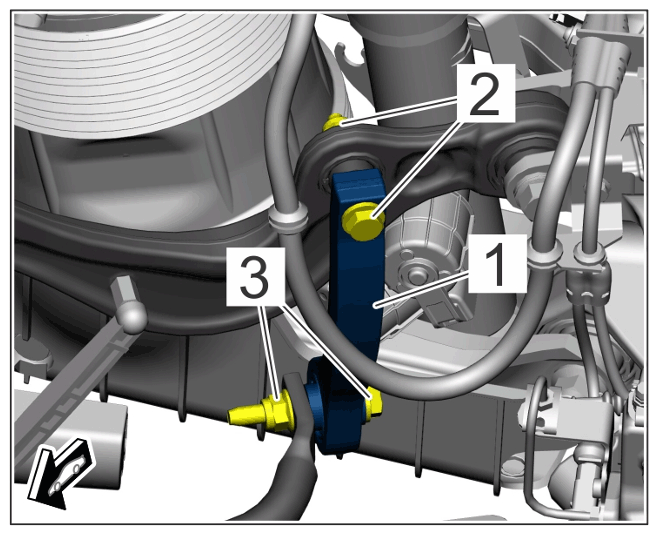

Connecting link for anti-roll bar	Item 3. Hexagon-head bolt, M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Initial tightening	40 Nm (29.4 ftlb.) (29.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Connecting link to anti-roll bar	Item 3: Hexagon-head screw M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Final tightening	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
