Technical Values

Location	Description	Type	Basic value
wheel bearing to wheel bearing housing	Item 2: Internal serration screw M12 x 42/Always replace screws following removal	Initial tightening	80 Nm (59 ftlb.) (59 ftlb.)

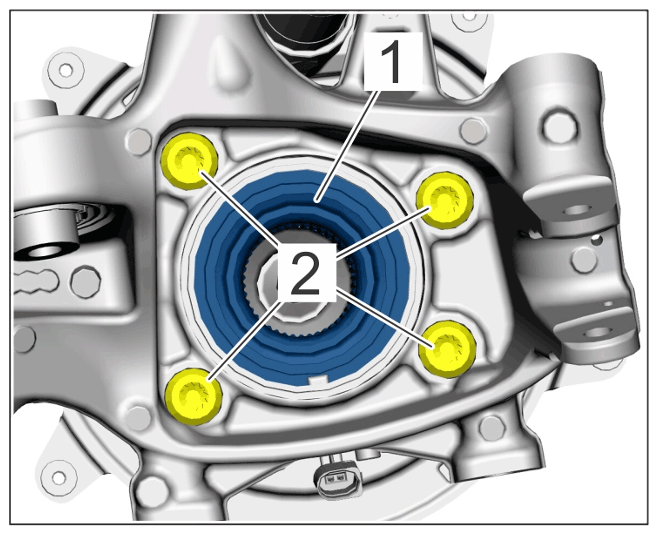

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel bearing to wheel bearing housing
Wheel bearing to wheel bearing housing	Item 2: Internal serration screw M12 x 42/Always replace screw following removal!	Final tightening torque	+ 90 (66 ftlb.)°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel bearing to wheel bearing housing
drive shaft to wheel hub	Item 2: Collar screw, M16 x 1 5 x 72/Always replace bolts following removal	Initial tightening	200 Nm (147.5 ftlb.) (147.5 ftlb.)

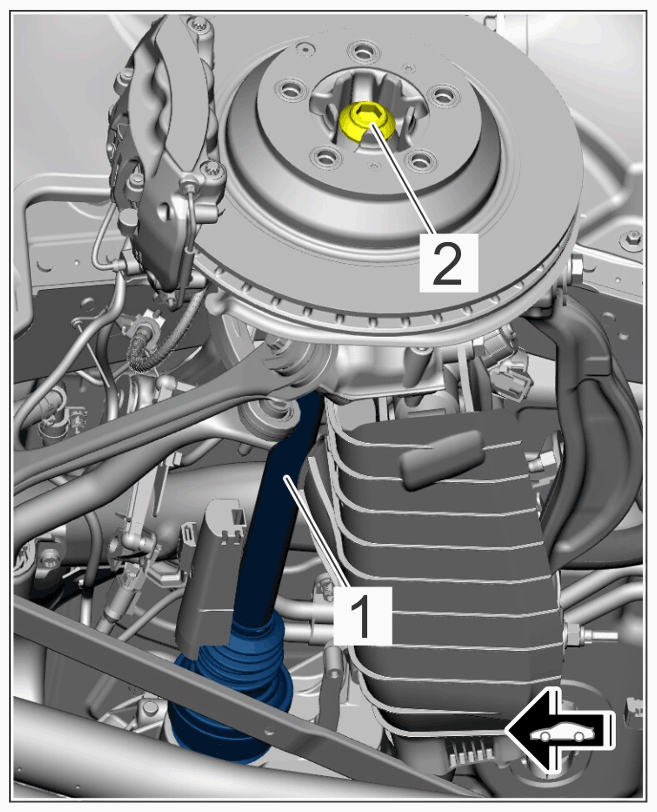

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drive shaft to wheel hub
Drive shaft to wheel hub	Item 2: Collar screw M16 x 1.5 x 72/Always replace bolts following removal.	Final tightening	+ 180 (133 ftlb)°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drive shaft to wheel hub
