Subsequent Work

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

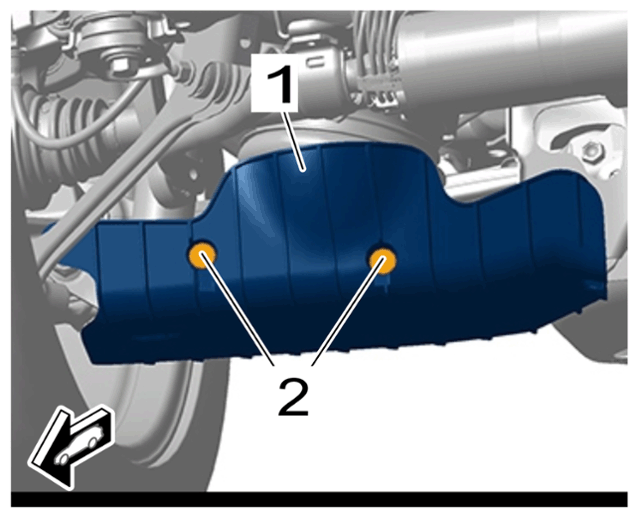

Rear axle trim panel

1. 1.1  Replace clips -2-  .

> 465319 REMOVING AND INSTALLING REAR BRAKE DISC

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

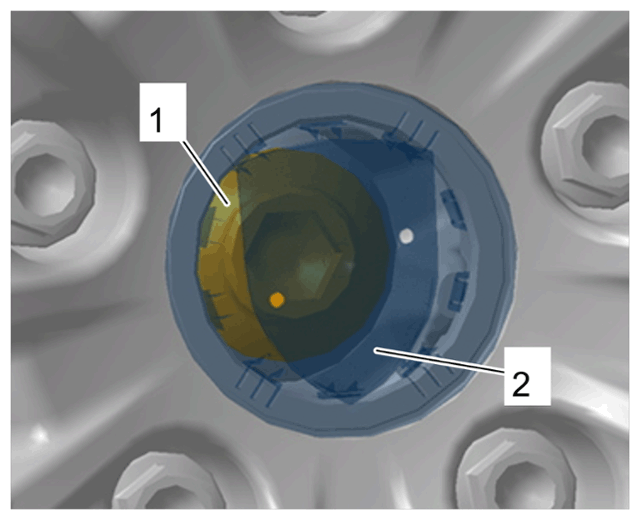

Drive shaft screw

1. 3.1  Replace screw for drive shaft -1-  .
2. 3.2  Screw in and tighten new screw on drive shaft -1-  .

   > Initial tightening 200 Nm (147.5 ftlb.) (147.5 ftlb.)

   > Final tightening + 180 (133 ftlb)°

3. 3.3  Fit hub cap -2-  .
