Preliminary Work

  1. Loosen screw on drive shaft -1-

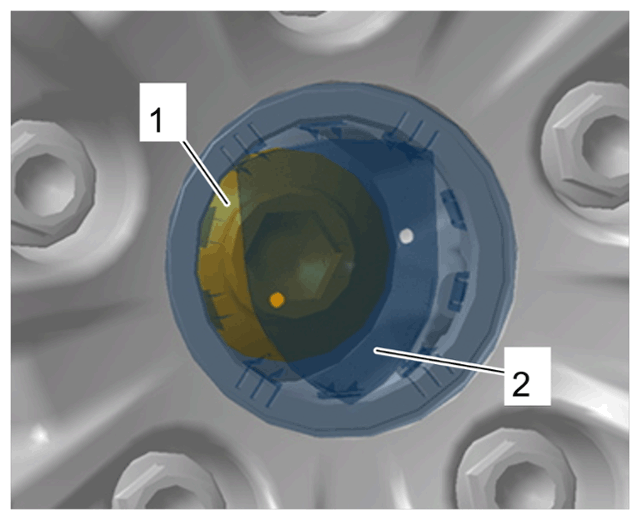

    G15292027Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 1.1  Pull off hub cap -2-  .
    2. 1.2  Loosen screw on drive shaft -1-  .
  2. Remove rear brake disc.

    > 465319 REMOVING AND INSTALLING REAR BRAKE DISC

  3. Remove rear axle trim panel -1-  .

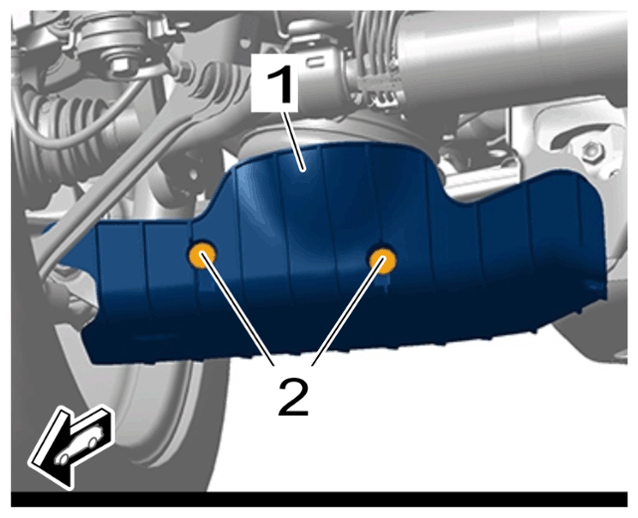

    G15292028Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear axle trim panel

    1. 3.1  Unclip clips -2-  .
    2. 3.2  Remove rear axle trim panel -1-  by pulling it downwards.
