Subsequent Work

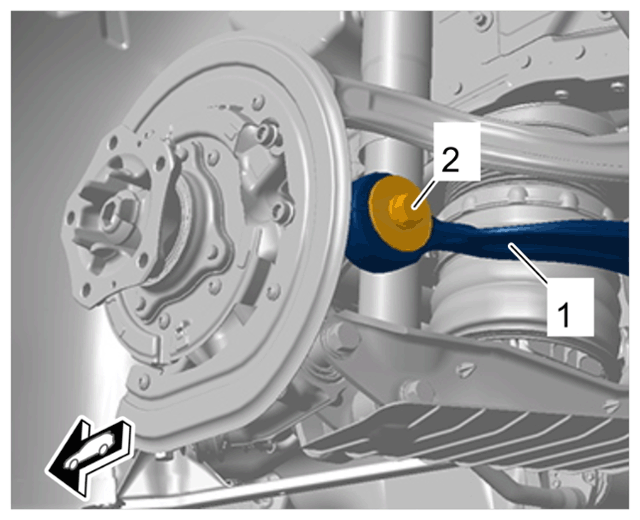

Install tie rod -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie rod
1. 1.1 Tighten screw on tie rod -2- .
  > Initial tightening torque 100 Nm (73.8 ftlb.)

  > Final tightening torque + 180 (133 ftlb.)°
Install spreader device.
> Removing and installing spreader device
Install brake shoes.
> Removing and installing brake shoes

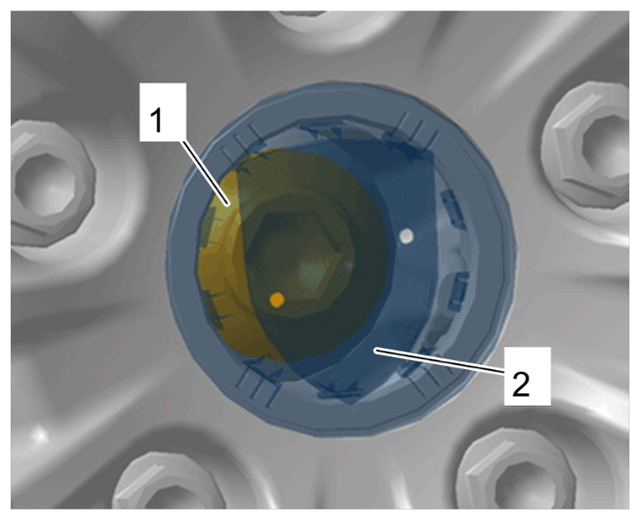

Fit screw on drive shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft screw
1. 4.1 Replace screw for drive shaft -1- .
2. 4.2 Screw in screw on drive shaft -1- .
3. 4.3 Lower the vehicle.
4. 4.4 Tighten new screw on drive shaft -1- .
  > Initial tightening 200 Nm (147.5 ftlb.) (147.5 ftlb.)

  > Final tightening + 180 (133 ftlb)°
5. 4.5 Fit hub cap -2- .
Perform suspension alignment.
> WM, 449503 MEASURING FRONT AND REAR VEHICLE
