Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| longitudinal arm to rear axle housing | Item 6: Hexagon head bolt M10 x 70/Replace bolts after each disassembly! | Pre-tightening | 40 Nm (30 ftlb.) (29.5 ftlb.) | ||
| Longitudinal control arm on rear axle beam | Item 6: Hexagon-head bolt, M10 x 70/Always replace bolts following removal! | Final tightening | + 180 (133 ftlb.)° | ||
| longitudinal arm to wheel bearing housing | Item 7: 12-sided bolt, M12 x 1.5 x 85/Always replace bolts following removal! | Initial tightening of | 70 Nm (52 ftlb.) (51.6 ftlb.) | ||
| longitudinal arm to wheel bearing housing | Item 7: 12-sided bolt, M12 x 1.5 x 85/Always replace bolts following removal! | Final tightening | + 180 (133 ftlb.)° | ||

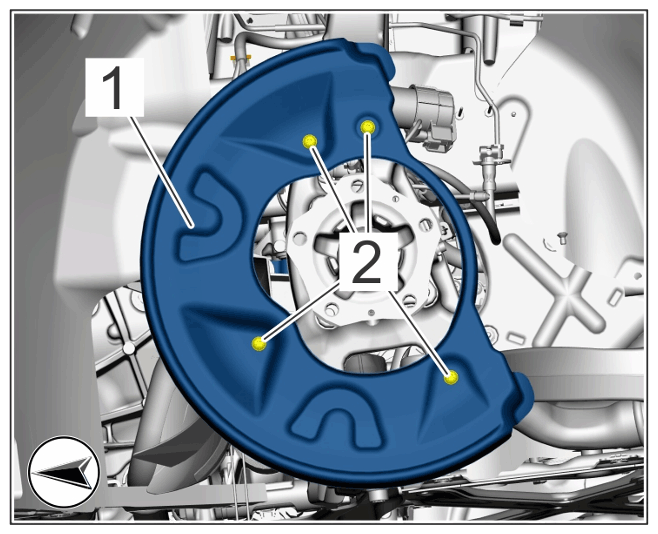

| Brake cover plate to wheel bearing housing | Item 2: Internal hexagon round-head bolt M6 x 14 | Tightening torque | 10 Nm (7.4 ftlb.) | ||
|
Brake cover plate, front |
