Technical Values

Location	Description	Type	Basic value
Stone guard to air supply system holder	Hexagon nut, M6	Tightening torque	9 Nm (6.5 ftlb.)
Angle sensor for HBA	Item 1, 2	Tightening torque	8 Nm (6 ftlb.)

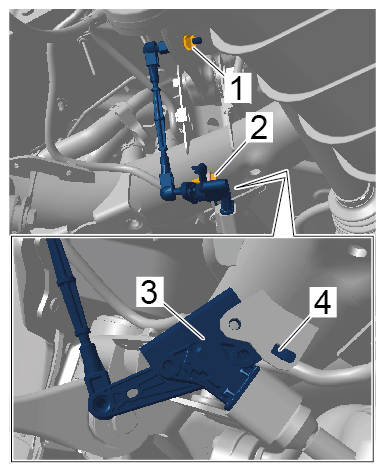

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Angle sensor for headlight beam adjustment (HBA)
Upper control arm at the rear to rear axle housing	Item 6: Internal serration screw, M12 x1.5 x 85/Always replace screws following removal!	Initial tightening	70 Nm (51.6 ftlb.)
Upper control arm rear, to rear axle housing	Item 6: Internal serration screw M12 x 1.5 x 85/Always replace screw following removal!	Final tightening torque	+ 180°
Rear upper control arm on wheel bearing housing	Item 7: Hexagon-head bolt M14 x 1.5 x 100/Always replace screws following removal!	Initial tightening torque	100 Nm (73.8 ftlb.)
Front axle carrier on rear body	Item 7: Hexagon head bolt M14 x 1.5 x 100/Always replace bolts following removal!	Final tightening torque	+ 180 (133 ftlb)°
Screw securing front upper control arm to rear axle housing	Item 8: Hexagon-head bolt, M10 x 70 Always replace bolts following removal!	Initial tightening	40 Nm (29.5 ftlb.)
Front upper control arm on rear axle housing	Item 8: Hexagon-head bolt, M10 x 70/Always replace bolts following removal!	Final tightening	+ 180 (133 ftlb.)°
Upper control arm front to wheel bearing housing	Item 9: Hexagon-head bolt M12 x 1.5 x 85/Always replace screws following removal!	Initial tightening torque	70 Nm (51.6 ftlb.)
Front axle carrier on front body	Item 9: Hexagon head bolt M12 x 1.5 x 85/Always replace bolts following removal!	Final tightening torque	+ 180 (133 ftlb.)°
Connecting link to upper control arm	Item 2: Hexagon-head bolt, M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Initial tightening	40 Nm (29.4 ftlb.) (29.5 ftlb.)

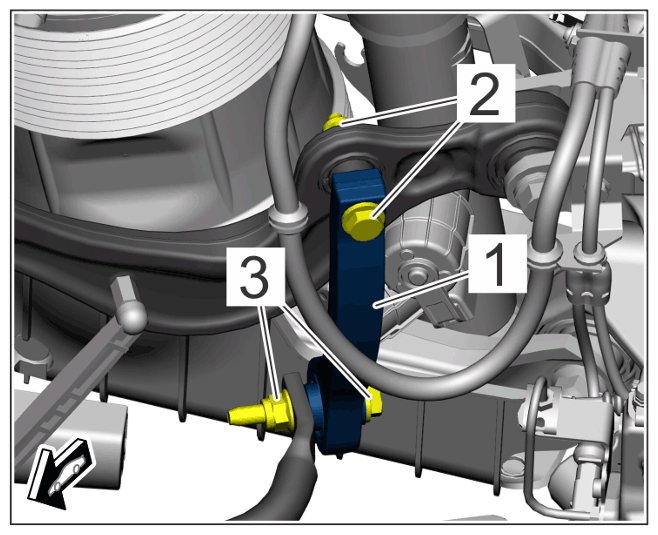

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
Connecting link to upper control arm	Item 2: Hexagon-head screw M10 x 70 and hexagon nut/Always replace bolts and nuts following removal!	Final tightening	+ 180°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Connecting link for anti-roll bar
