Removing Drive Shaft

  1. Remove drive shaft -1-  .

    Mask the drive shaft at the contact surface with fabric tape or place a protective plate (wood or plastic) between the mounting lever and drive shaft.

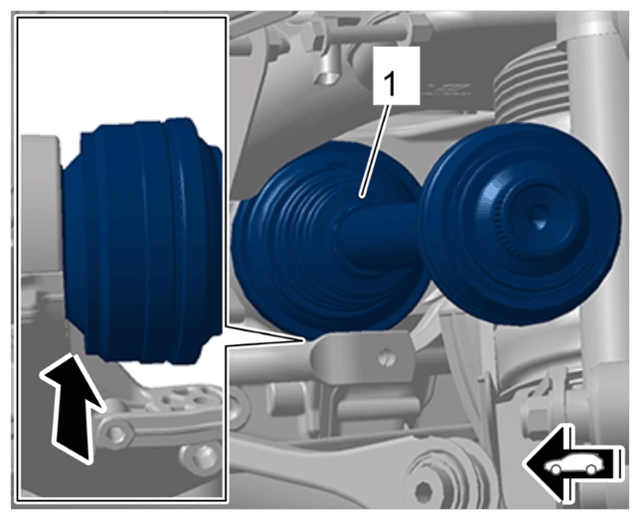

    G15291947Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing drive shaft

    1. 1.1  Fit tire iron at position -Arrow-  .
    2. 1.2  Lever out drive shaft -1-  and guide it out of the final drive.
