Subsequent Work

Connect electric plug connection for air spring bellows and screw in screws on air spring bellows.
1. 1.1 Tighten screws on air spring bellows to > Tightening torque 3 Nm (2 ftlb.) .
  Information
  - The air bellows may only be filled if it was already positioned correctly in the trailing arm (to do this, lift lower trailing arm using > VAS 6931 - transmission and aggregate jack if necessary).
Fill the relevant air spring bellows.
> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
Install cover for centre underbody.
> Removing and installing cover for centre underbody
Visually inspect the rear air spring bellows.
Rolling creases in the protective boot must be removed correctly (no kinks)!

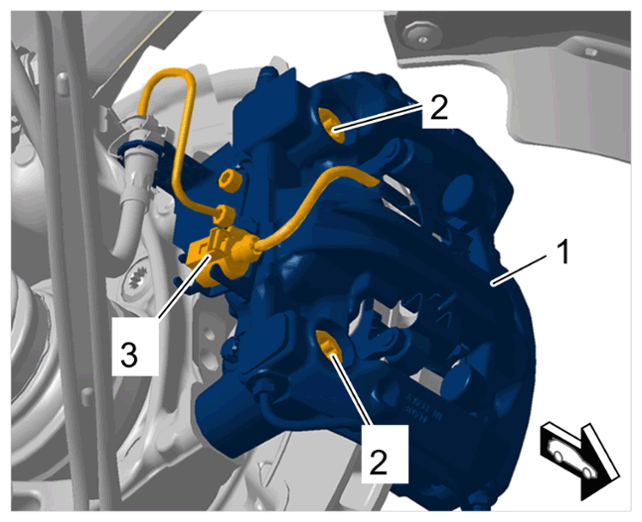

Install rear brake callipers -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear brake calliper
1. 5.1 Detach rear brake callipers -1- .
2. 5.2 Position rear brake callipers -1- .
3. 5.3 Replace screws on brake calliper -2- .
4. 5.4 Connect electric plug connection for wear indicator -3- until it engages with an audible click.
5. 5.5 Screw in and tighten brake calliper screws -2- .
  > Initial tightening 30 Nm (22 ftlb.) and > Final tightening + 75°
Install the cardan shaft.
> Removing and installing cardan shaft
Install exhaust system.
> Removing and installing exhaust system
Perform start-up procedure for 48 V vehicle electrical system.
> 2X00IN WORK INSTRUCTION FOR 48 V VEHICLE ELECTRICAL SYSTEM
Perform suspension alignment.
> 449503 PERFORMING FRONT AND REAR SUSPENSION ALIGNMENT
Calibrate steering-angle sensor.
> 456005 INITIALISING AND CALIBRATING STEERING-ANGLE SENSOR
