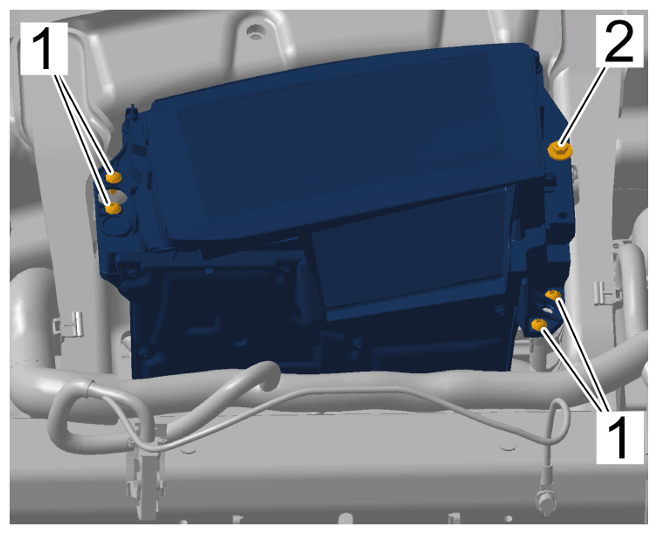

| Windscreen projection control unit to dashboard |
Item 1 |
Tightening torque |
4 Nm (3 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
| Windscreen projection control unit to dashboard |
Item 2 |
Tightening torque |
5.5 Nm (4 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws |
