Removing Infrared Camera Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

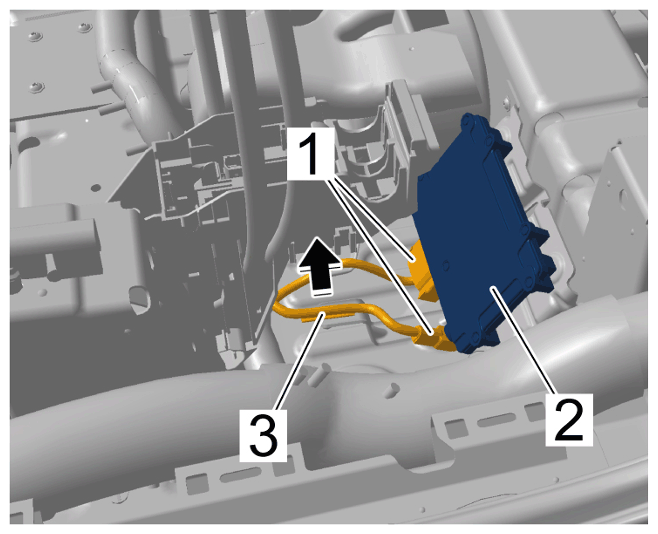

1. Release and disconnect electric plug connections -1-  from infrared camera control unit -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Unclip electric line -3-  from the bracket -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line

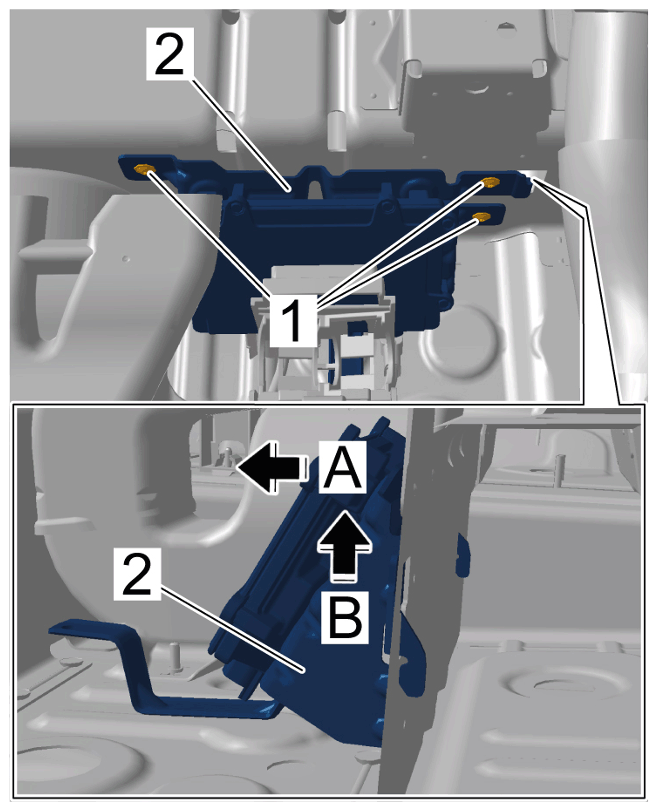

3. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

4. Disengage bracket -2-  with infrared camera control unit from the seat cross member -arrow B-  and remove it -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

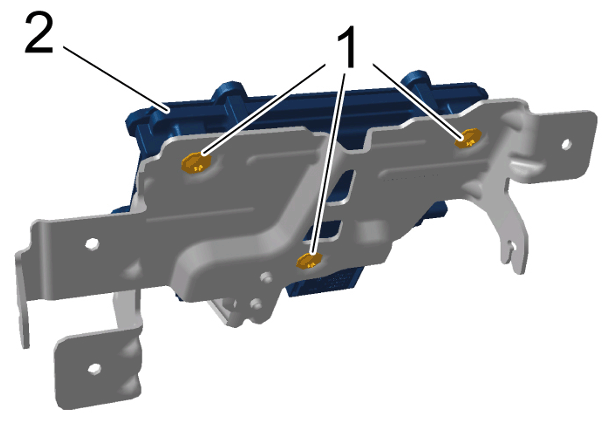

5. Unscrew fastening screws -1-  and remove infrared camera control unit -2-  from the bracket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
