Removing Infrared Camera

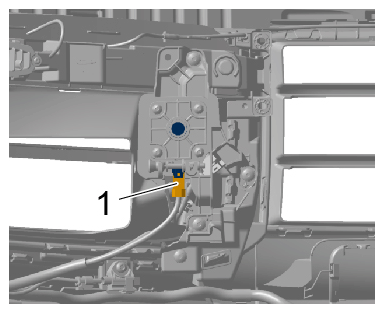

1. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

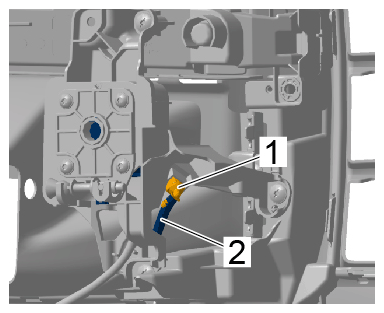

2. Release washer-fluid hose connection -2-  from spray nozzle -1-  and pull it off.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hose connection

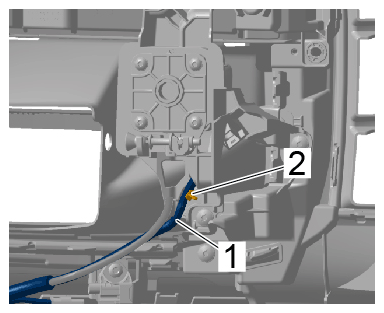

3. Unclip line bracket -2-  from infrared camera holder and guide out washer-fluid hose -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Washer-fluid hose

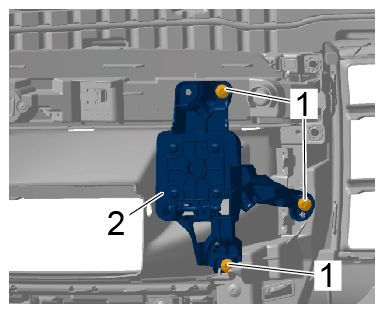

4. Unscrew fastening screws -1-  and remove infrared camera holder -2-  together with the infrared camera.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Infrared camera holder

5. Only when replacing components:

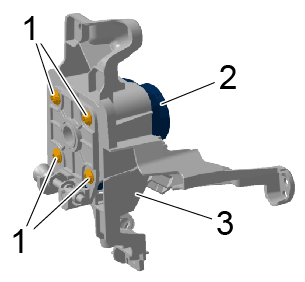

   Unscrew fastening screws -1-  and remove infrared camera -2-  from the infrared camera  holder -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Infrared camera
