Checking PCC/PVTS Activation
- Connect the Tester to the vehicle and start it. Switch on ignition.

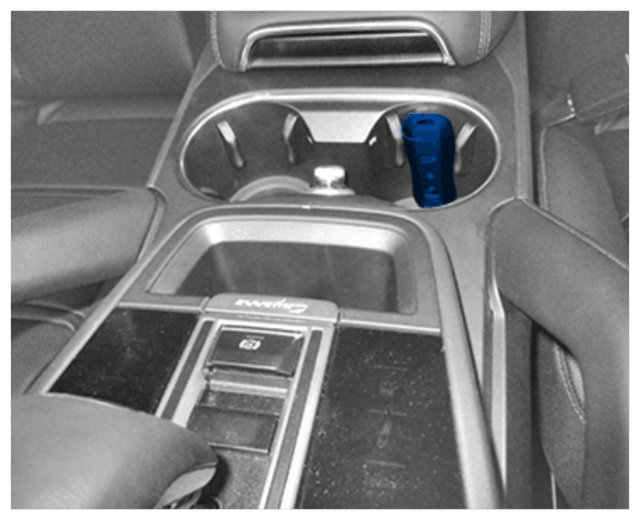

- Place original remote control (hand-held transmitter) in emergency start tray.
Emergency start tray
- Select the vehicle type if required.
- Select the Gateway control unit in the Overview. Press F12 to continue.
- Actual values/input signals must now be selected.
- PVTS must be selected. Press F12 to continue.
- Status: Operating mode must be selected. Press F12 to continue.
- The measured value Normal operation
must be displayed.
The fault memory entry B17DF52 "PVTS not activated" must not be active.
