Checking PCC/PVTS Activation (Vehicles With I-No. NZ3 (Emergency Call System Era GLONASS))

Connect the Tester to the vehicle and start it. Switch on ignition.
Place original remote control (hand-held transmitter) in emergency start tray.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

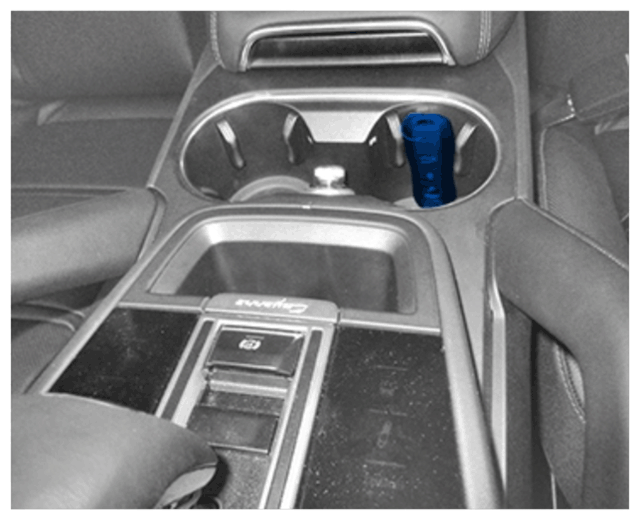

Emergency start tray
Select the vehicle type if required.
Select the Porsche Vehicle Tracking System (PVTS) - EACU only control unit in the overview. Press F12 to continue.
Actual values/input signals must now be selected.
PVTS must be selected. Press F12 to continue.
Status: Operating mode must be selected. Press F12 to continue.
The measured value Normal operation must be displayed.
The fault memory entry B17DF52 "PVTS not activated" must not be active.
