Activating PCC/PVTS

Information

PCC and PVTS are generally activated by the customer directly in the Porsche web shop.

If activation fails:

Park the vehicle in a place where sufficient mobile phone reception is guaranteed.

The mobile phone reception signal can be checked as follows:

  1. Connect the Tester to the vehicle and start it. Switch on ignition.
  2. Place original remote control (hand-held transmitter) in emergency start tray.

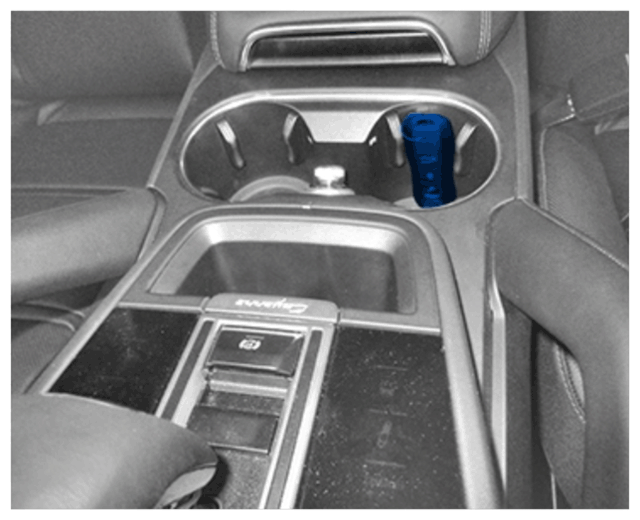

    G15230882Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Emergency start tray

  3. Select the vehicle type if required.
  4. Select the Gateway  control unit in the Overview.  Press F12 to continue.
  5. Actual values/input signals  must now be selected.
  6. Mobile communication  must be selected.
  7. Connection status: validity  must then be selected.
  8. The measured value valid  must be displayed.

    Then create a ticket in the PRMS in order to get Vodafone to start the activation process again. This process can take up to a week.

    To ensure prioritised processing of the ticket, use the "Vodafone code word" for the ticket.
