Removing PVTS Control Unit (Vehicles With I-No. NZ3 (Emergency Call System Era GLONASS))

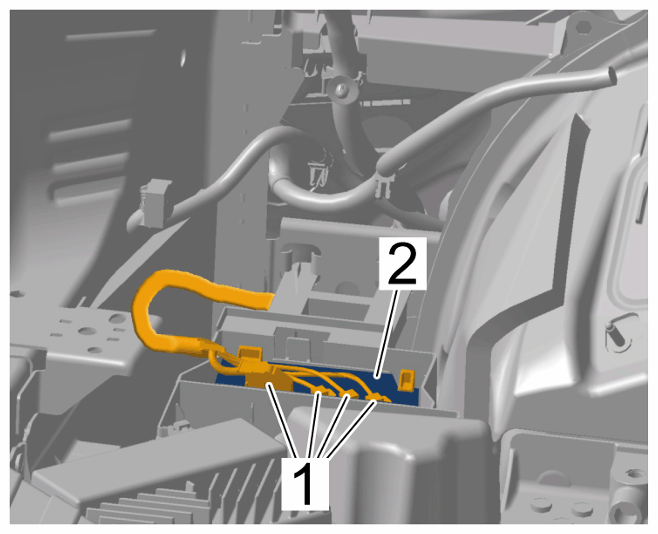

1. Release and unplug electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Unclip PVTS control unit -2-  and remove it from the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PVTS control unit
