Installation Position
Attention:
On vehicles without optional I-no. NZ3 (emergency call system control unit ERA GLONASS), the PVTS control unit is integrated in the gateway control unit.
> 903519 REMOVE AND INSTALL GATEWAY CONTROL UNIT
On vehicles with country code C02/C36 (USA/Canada) and optional control unit - external communication (Connect control unit), the PVTS control unit is integrated in the control unit - external communication.
> 912519 REMOVE AND INSTALL CONTROL UNIT - EXTERNAL COMMUNICATION
On vehicles with optional I-no. NZ3 (emergency call system ERA GLONASS), the PVTS control unit is located under the rear-end electronics control unit.

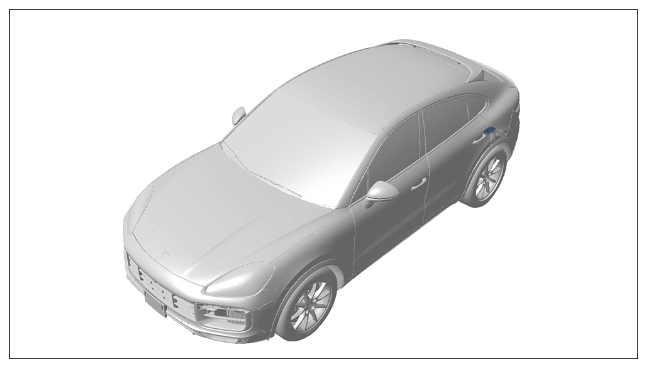

Installation position
