Removing GPS Antenna For PVTS

  1. Unclip GPS antenna from holder

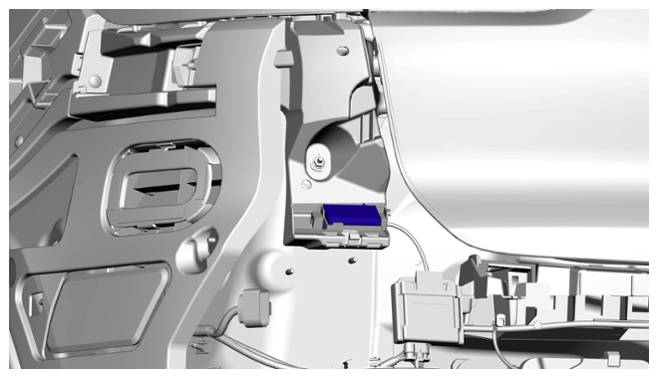

    G15230876Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    GPS antenna

  2. Release and disconnect electric plug connection.

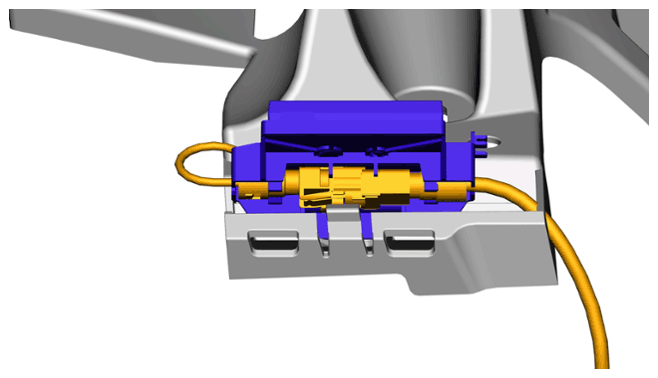

G15230877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
