Removing And Installing Cigarette Lighter In Rear Centre Console

  1. Remove glow element -1-  .
    G15230855Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Glow element

  2. Press out cigarette lighter in rear centre console -1-  using a screwdriver -Arrow-  .

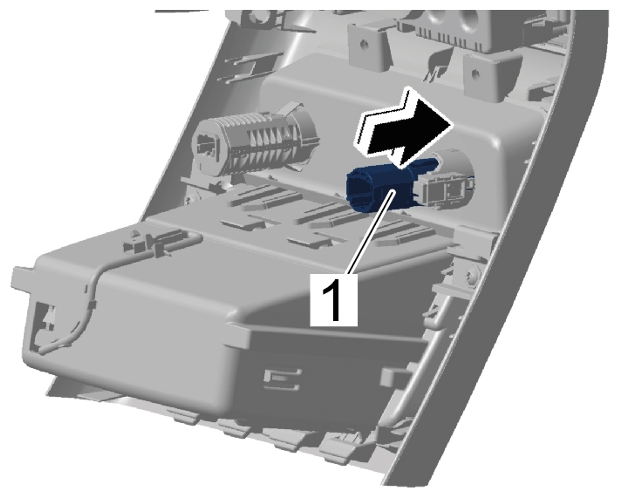

    G15230856Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cigarette lighter in rear centre console

  3. Installation is performed in reverse order.
