Removing And Installing Cigarette Lighter In Front Centre Console

  1. Remove glow element -1-  .
    G15230852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Glow element

  2. Press out cigarette lighter in front centre console -1-  using a screwdriver -Arrow-  .

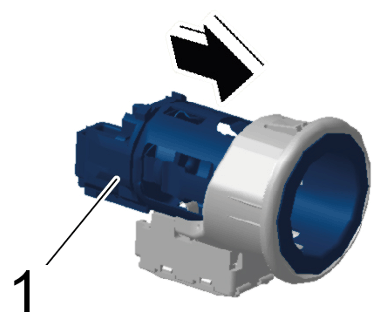

    G15230853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cigarette lighter in front centre console

  3. Unclip cigarette lighter from front centre console -1-  .

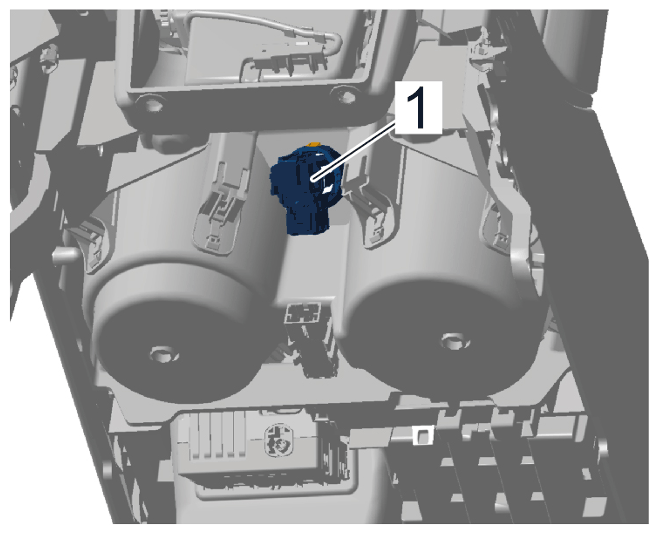

    G15230854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cigarette lighter in front centre console

  4. Installation is performed in reverse order.
