Removing And Installing Plug Socket In Rear Centre Console

  1. Remove cover -1-  .

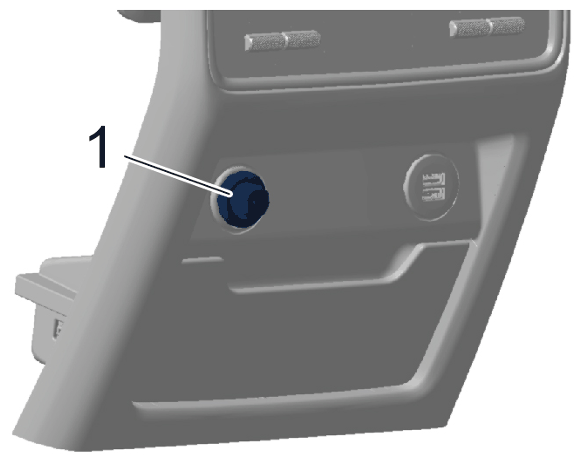

    G15230845Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

  2. Press out plug socket in rear centre console -1-  using a screwdriver -Arrow-  .

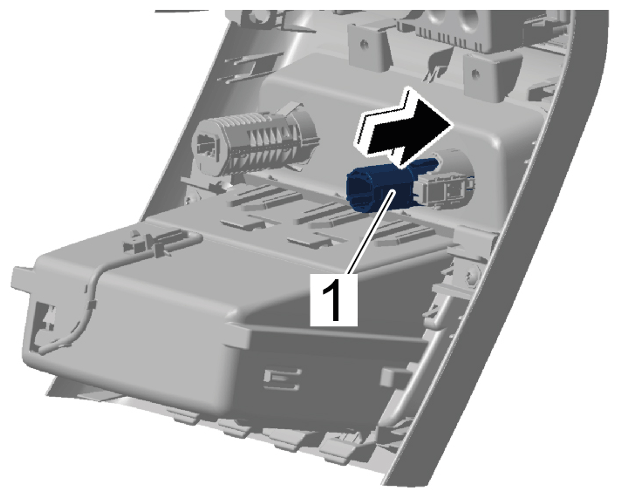

    G15230846Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug socket in rear centre console

  3. Installation is performed in reverse order.
