Removing And Installing Plug Socket In Passenger Footwell

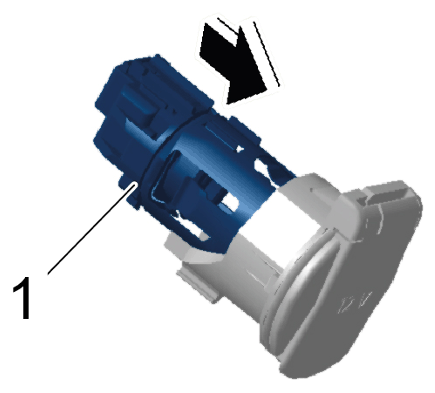

  1. Open the cover and press out plug socket in passenger footwell -1-  using a screwdriver -Arrow-  .
    G15230847Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug socket in passenger footwell

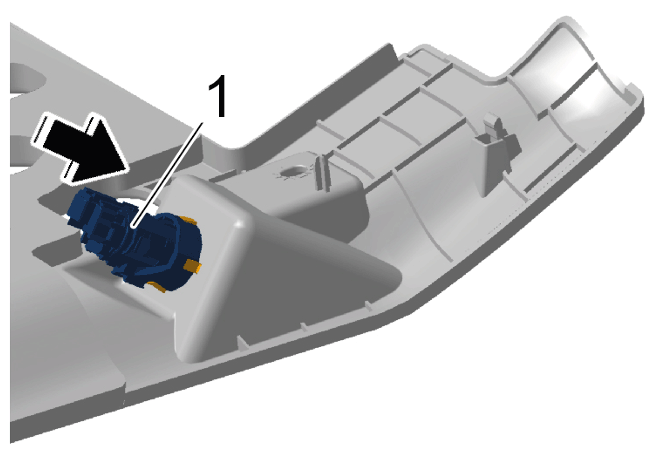

  2. Unclip plug socket in passenger footwell -1-  .
    G15230848Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug socket in passenger footwell

  3. Installation is performed in reverse order.
