Removing And Installing Plug Socket In Luggage Compartment

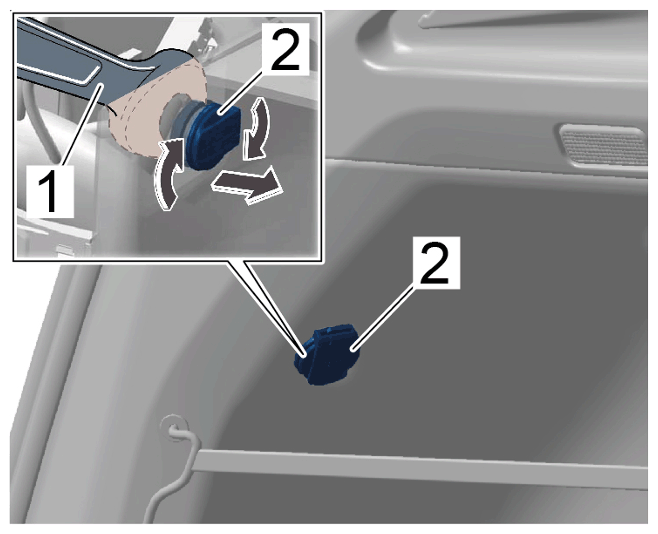

  1. Using an open-ended wrench -1-  , loosen plastic nut behind the luggage compartment trim panel by a few turns, press plug socket in luggage compartment -2-  out slightly and unscrew it -Arrows-  .
    G15230849Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plastic nut

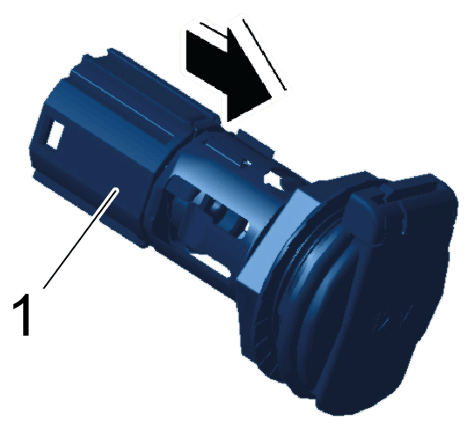

  2. Open the cover and press out plug socket in luggage compartment -1-  using a screwdriver -Arrow-  .
    G15230850Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

  3. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten plastic nut behind luggage compartment trim panel to > Tightening torque 3 Nm (2 ftlb.)  .
