Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw for horn Item 1 Tightening torque 8 Nm (6 ftlb.)

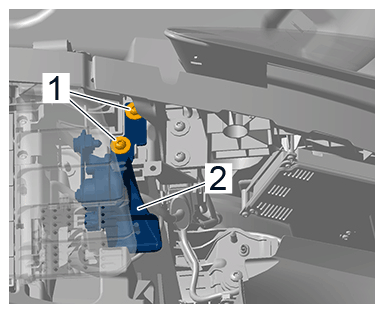

G15230834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for horn
